Drilling New polycrystalline diamond step drills

Source: Press release

Related Companies

Following its launch of polycrystalline diamond (PCD) tipped parting-off tools, Horn has introduced new step drills having cutting edges tipped with PCD for drilling, boring and countersinking non-ferrous metals.

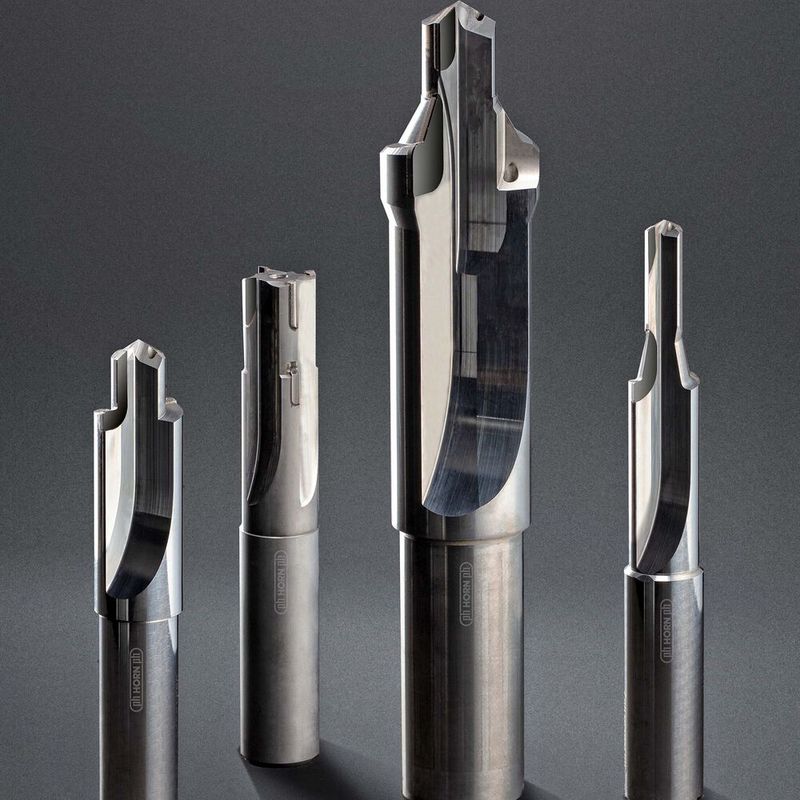

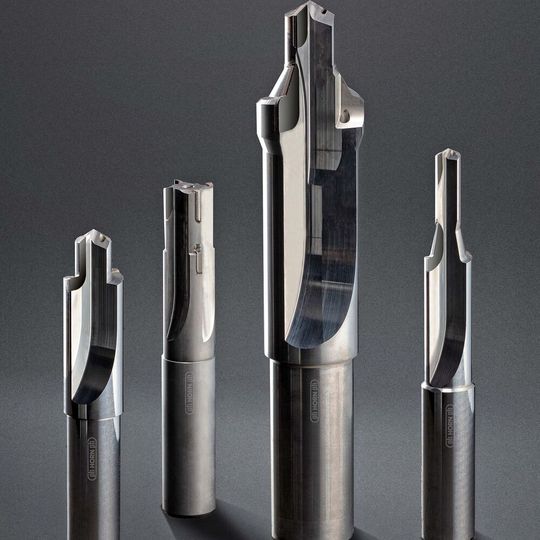

All variants of Horn's PCD-tipped step drills have an internal coolant supply.
All variants of Horn's PCD-tipped step drills have an internal coolant supply.
(Source: Horn )

With its new PCD tool system, Horn offers a solution that achieves greater drilling precision and produces better surface quality due to the sharp cutting edges. The polycrystalline diamond step drills permit high cutting parameters during machining, which makes it possible to reduce the processing time and hence the cost per component in series production.

The company only offers the PCD-tipped step drill as a special tool. The PCD tip is available on tools of 4 mm diameter and above. All variants have an internal coolant supply. The carbide monobloc shanks, which are available in all common DIN diameters from 6 mm to 25 mm, ensure good vibration damping during machining. The monobloc shank is available in a steel variant from a diameter of 32 mm.

PCD is a synthetically produced, extremely hard, intergrown mass of diamond particles with random orientation in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature. Economical machining of steel is rarely possible due to the affinity of iron for carbon in the diamond. As the temperature increases, the carbon from the diamond diffuses into the steel, severely limiting tool life.
