Allied Machine New drilling system to be released this autumn

| Editor: Steffen Donath

Allied Machine and Engineering proudly announces their high-penetration drilling system, the T-A Pro.

Related Companies

The T-A Pro drilling system will be available to order from Allied Machine’s preferred distributors from 26 October 2020.
The T-A Pro drilling system will be available to order from Allied Machine’s preferred distributors from 26 October 2020.
(Source: Allied Machine)

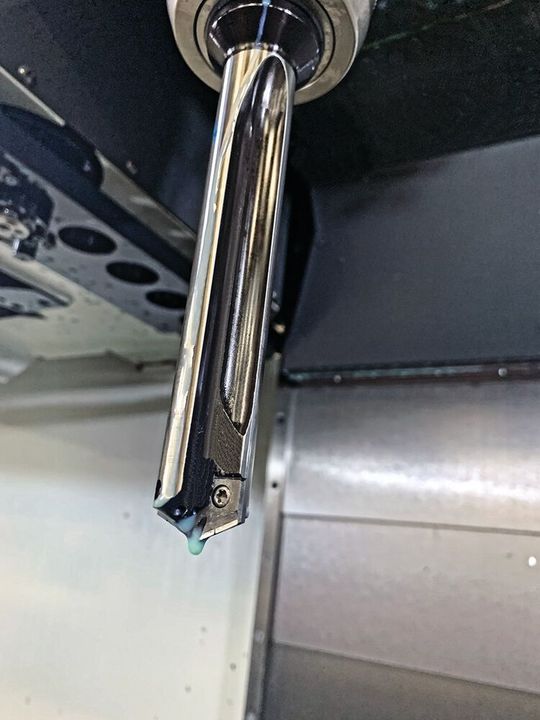

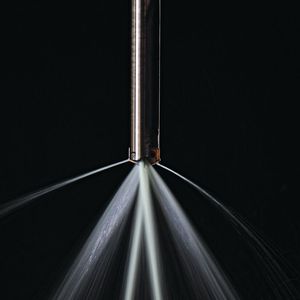

The T-A Pro drill combines material-specific insert geometries, a redesigned drill body and a proprietary through-coolant system to allow penetration rates which run at speeds up to 30 % faster than other high performance drills on the market, the company states. Coolant outlets are designed to direct maximum flow to the cutting edge providing quick heat extraction where most critical. Material-specific insert geometries produce impeccable chip formation and the drill body incorporates straight flutes redesigned for maximum coolant flow and excellent rigidity. These design elements combine to extend tool life, create consistent quality holes, and provide superior chip evacuation, as Allied Machine promises. As a result, the T-A Pro drill offers machine shops and high production manufacturers a spade drill with incredible speed and a cost per hole averaging 25 % less than existing drills.

Gallery

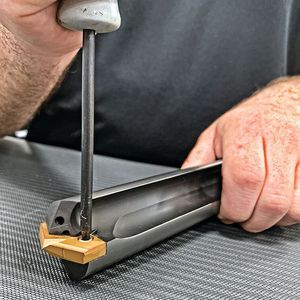

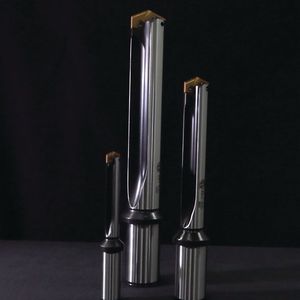

The T-A Pro drilling system will be available in diameters ranging from 11.10 mm – 47.80 mm and is ideal for holes ranging in stub, 3xD, 5xD, 7xD, 10xD, 12xD, and 15xD depths. The drill will be available in both metric and imperial shanks, with flat and cylindrical variants. The carbide insert geometries offered initially will cater to the following ISO material classes:

  • Steel (P) with AM300 coating
  • Cast iron (K), with TiAlN coating
  • Non-ferrous (N) with TiCN coating

Product manager, Sal Deluca, states, “The T-A Pro drill is designed for use in applications ranging well beyond general purpose drilling. It truly will target all industries, offering phenomenal tool life at high penetration rates, especially in situations where the balance of chip formation at high penetration is critical.”
