Modern valve gate nozzle technology enables perfect in-mould labelling

| Editor: Rosemarie Stahl

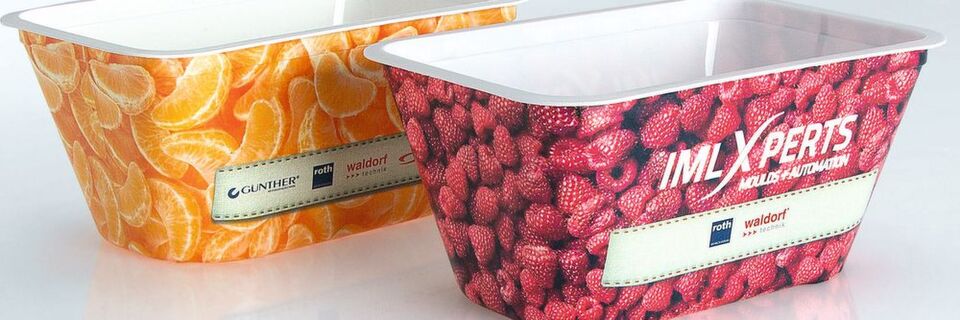

In-mould labelling enables high packaging quality. The plastic label is placed in the injection mould before injection.
In-mould labelling enables high packaging quality. The plastic label is placed in the injection mould before injection. (Source: Günther Heißkanaltechnik)

Roth Werkzeugbau, a manufacturer of precision moulds, uses the in-mould labelling process to achieve optimum results for the packaging industry. For this process, Roth relies on valve gate technology by Günther Hot Runner Technology.

By using the in-mould labelling (IML) process, injection moulders can produce fully printed plastic packages in a single step. The additional labelling step is avoided because the plastic for the container is injected directly into the printed film. For this reason, in-mould labelling achieves a high level of precision and process reliability.

The 130 employees of the family-operated Roth Werkzeugbau company, located in the Auma-Weidatal region of Saxony, build precision moulds for the automotive, pharmaceutical, electronics, consumer and packaging industries. For injection moulding in particular, solutions for multi-component and multi-daylight injection moulding tools are developed in co-ordination with customers.

At Roth Werkzeugbau's in-house technical centre, comprehensive tests with a variety of material and label types can be carried out. Special significance is given to hot runner technology with these solutions, as customers in the packaging technology sector expect optimum injection point quality with the shortest possible cycle time and very high service and maintenance friendliness.

With the in-mould labelling process, cut and printed plastic films (so-called labels) are precisely placed in the injection moulding tool using a handling unit. Through the application of a vacuum or static charge, the labels are secured and then back-injected with plastic. Through the use of heat and pressure, the carrier films precisely matched to the plastic are fused with the introduced molten plastic to create a final product in the filling and holding-pressure phase.

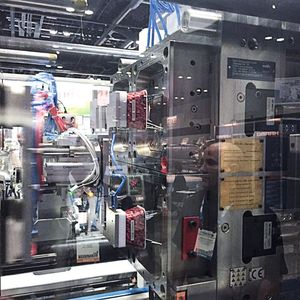

Today, this technology is frequently used with multi-daylight moulds so as to increase output without negatively affecting reproducibility or quality. Product packaging is a very important marketing and sales instrument in the foodstuffs industry. The labels of a finished cup often cover five sides of the packaging, where text, graphics and sometimes full-surface photos are found on each side. This requires perfect interplay between the individual components to achieve optimum results.

Efficient production with valve gate technology

In this reference production, the curd cheese cups made of a low-viscosity PP have a shot volume of 8 cm³. The wall thickness of the cup lies between 0.4 mm and 0.5 mm. The injection point diameter is 2 mm. Based on positive experiences in other areas, the Roth Werkzeugbau decided to use Günther valve gate technology for injecting the cup in the in-mould labelling tool.

Outstanding service and quality at the core of the company

Company Portrait

Outstanding service and quality at the core of the company

09/07/2017 - Günther Hot Runner Technology is known to most toolmakers. Even though the company has a sales and service network all over the world today, the company still manufactures exclusively in Germany. ETMM spoke with Managing Director Siegrid Sommer and Head of Sales and Technical Consulting Horst-Werner Bremmer about what distinguishes Günther from other hot runner providers. read...

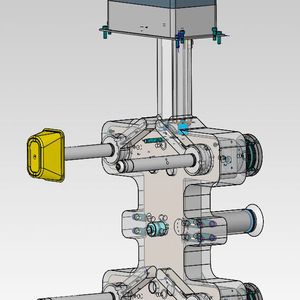

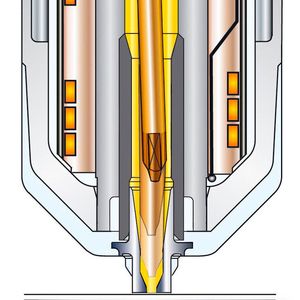

The mould concept for the "IML 3D full cover" system involves the use of a 4x valve gate system with an 8NHT1-200 nozzle and an LA needle guide. The needle guide is highly durable thanks to the material used and can easily be replaced when worn. The elimination of insert reworking saves time and reduces expenses. The quality of the injection point on the finished item completely fulfils customer requirements thanks to the high production tolerances of the cylindrical portion and the precise needle guidance in the µ range. A pneumatic single-needle valve of type ENV3/10/L/G handles the drive function. These valves are comprised of pistons and housings, in which the running surfaces with a roller-burnished surface quality are incorporated to achieve a long service life of the sealing rings.

“Our co-operation with Günther Hot Runner Technology was extremely successful,” explained Managing Director Marco Roth. “Our customers demand a visually perfect product for a saleable price. The only way this can be made possible is with high process reliability and minimal cycle time. Thanks to the hot runner system, we were able to reduce the cycle time to less than five seconds. This enables high production volumes within a short time.”
