EMO 2019 / Ibarmia

Making an entrance

| Editor: Steffen Donath

Ibarmia can be found in Hall 13 at Booth B56.
Ibarmia can be found in Hall 13 at Booth B56. (Source: Ibarmia)

Ibarmia aims to get a hold in the market with their presentation at this year's EMO. The company will showcase their machining centres at the trade fair.

At EMO 2019, the first exponents of the Ibarmia of tomorrow will come to light, the company states:

  • A new concept of machines, more attractive, functional and ergonomic.
  • A new generation of multitasking machining centres in which the integral manufacture of parts in a single set up is a reality.
  • New thermo-intelligent designs that allow our machines to reach high accuracy.
  • Machines definitely aligned with the new digital dimension, connected to the Smart Factory and equipped with systems that allow a more intuitive and productive handling of them.

As a representative of their entire line-up, the company will exhibit two machining centres at the show:

ZVH 58 / L4000 Extreme:

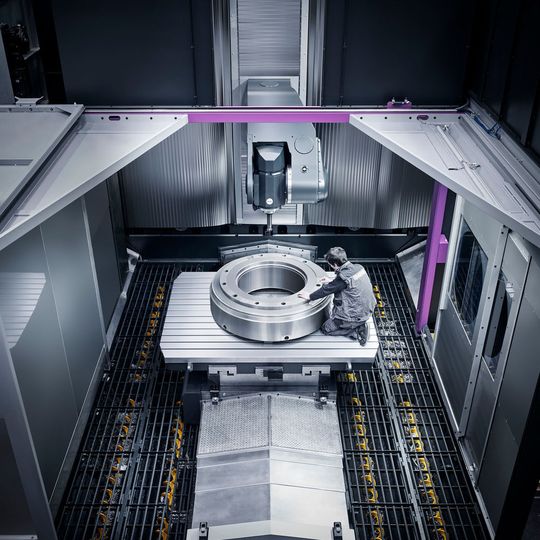

Machining centre in mobile column architecture for work in up to 5 continuous axes by means of a rotating head (+/- 105º) and integrated divider of ø1000 mm, with linear strokes of X 4000 mm, Y 1000 mm and Z 1100 mm and equipped with a powerful SK 50 electro-spindle of up to 12000 rpm and 74 kW.

THC 16 Multiprocess:

5-axis universal machining centre and multitasking (milling + turning + grinding) with linear strokes of X 1600 mm, Y 1300 mm and Z 1200 mm for work on rotary table with diameters of up to ø1600 mm of pieces up to 6000 kg by Universal head with 45º (-15º / + 195º) rotation plane equipped with an HSK 100 electro-spindle of up to 12000 rpm and 74 kW.
