Cutting Tools Heavy-duty turning with Eight Cutting Edges per Insert
Kennametal has released the FIX8 heavy-duty turning system, delivering maximum metal removal rates in steel, stainless steel and cast iron. With eight cutting edges per insert, the FIX8 turning system increases productivity of any heavy-duty turning operation, providing the lowest cost per edge while reducing cutting forces up to 15 percent.
A new heavy-duty turning system from Kennametal delivers high metal removal rates in turning operations with low cost per cutting edge. FIX8 has eight cutting edges per insert. The tangential design allows it to sustain higher loads than traditional designs.
FIX8 is designed to cover a wide range of applications, including turning and facing, smooth surfaces, interrupted, and heavily interrupted cuts. From medium depth-of-cut to roughing in steels, cast iron, and challenging materials like stainless steel, FIX8 handles it all. Even feed rates of up to 1.4 mm (0.055") and depths of cut up to 12 mm (0.472") are possible with FIX8.

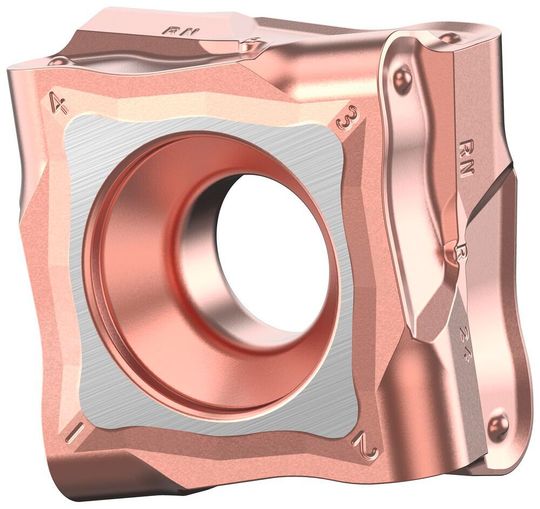

The tangential design of the FIX8 insert features a rigid clamping system that pulls the insert securely into the pocket seat, offering superior stability that enables the insert to withstand large cutting forces and vibrations for optimal performance. The insert is also supported by a replaceable carbide shim, protecting the pocket against deformation and damage.
The FIX8 tool holder features precision 3D coolant technology, supplying sufficient coolant precisely where needed. Three coolant nozzles are directed to the rake face, controlling temperature, chip evacuation, and supporting chip formation. Coolant exit holes in two different locations are directed toward the flank of the insert, controlling the heat in the cutting zone and prolonging tool life.
FIX8 provides high chip control for any heavy-duty turning application while increasing tool life. The insert design reduces cutting forces and power consumption, making it suitable for any low horsepower lathe.
