Although lightweight construction helps to reduce weight, the rapid success of mere material substitution hides the fact that it's not that simple at all. Magnesium plays an important role in this context, as it is most suitable for castings.

Lightweight construction has been a hot topic for years. However, although lightweight construction usually results in higher weight reductions than a mere substitution of a material could achieve, in practice, designers try to use different materials in lightweight construction.
Lightweight construction has been a hot topic for years. However, although lightweight construction usually results in higher weight reductions than a mere substitution of a material could achieve, in practice, designers try to use different materials in lightweight construction.
(Source: D.Quitter/konstruktionspraxis)

Lightweight construction can be defined as the effort to change a design in such a way that the quotient of useful weight to dead weight improves without having a negative impact on functionality resulting from this change. One goal could therefore be to increase the payload of a vehicle without increasing its dead weight; or to reduce the weight of the vehicle to the same possible payload without compromising its function as a safety, comfort and assistance system.


Lightweight construction has been a hot topic for years. However, although lightweight construction usually results in higher weight reductions than a mere substitution of a material could achieve, in practice, designers try to use different materials in lightweight construction. But a simple material exchange is not a satisfying solution, because another material usually requires a different design (e.g. more installation space or different radii) and/or production, e.g. forming, original forming or joining technology.

From a technological point of view, a combination of lightweight construction and materials has the greatest potentials. Therefore, anyone who wants to reduce the weight of components must be familiar with the limitations of lightweight material construction.

Quality Indicators Facilitate Assessment

If one focuses on the mechanical properties for a start, it is customary in lightweight construction to consider the specific, density-related property values of a material. For simple analytically solvable stress cases such as tension/compression, bending, torsion, buckling of bars and buckling of plates, it is quite easy to show that the required mass depends on geometric and material parameters.

If the geometry is assumed to be given, which from a technological point of view often makes sense — for example the given length and the installation space of the construction — the final weight depends on specific material properties, which are referred to as quality characteristics for these load cases and can be found in the tables provided by lightweight literature.

These tables, however, often use average material properties to indicate an average quality index. But if these parameters are taken as a basis for material preselection, provided properties are not adequate since many materials have such a wide range of properties that the mean values are not suitable for a specific case. While at least in the case of metallic materials some values, such as modulus of elasticity or density hardly change with the alloy composition or heat treatment, this does not apply at all to other important values such as tensile strength.

Standardized to the Characteristics of Steel

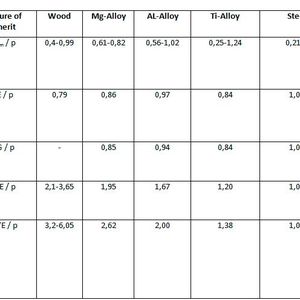

At the top of figure 1 a table shows the quality indicators that reflect the range of property variance of a material. The table illustrates that the modulus of elasticity and density of composite materials such as wood or fiber-reinforced plastics, as well as their proportions (fiber density) and geometric orientation to the load (fiber orientation, layer structure with several layers) vary considerably in some cases. This is because fiber composites are not actually materials, but they are rather constructions consisting of fibers orientated in a matrix.

The table has been standardized in accordance with the properties of steel, the most commonly used material in mechanical engineering. Therefore, all table values directly indicate the weight differences of a geometrically similar construction made of a certain material compared to steel. For example, when a GRP strut is designed for strength, it can be 1.19 to 15.86 times lighter than a steel strut, depending on which alloys or fiber composite is used as a cover. However, if the strut has to be designed for rigidity, it is only 0.37 to 0.93 times lighter in GRP, i.e. at least 7 % heavier.

An interesting fact is that with regard to the quality index for longitudinal rigidity, all metallic construction materials are equally suitable. For this reason, a material substitution offers no advantage — only CFRP enables a lighter construction under these conditions.

Since the tables frequently used in literature are not very descriptive, the lower part of figure 1 again illustrates these correlations. The tables or corresponding diagrams, as shown in the lower part of figure 1, provide a clear classification of a material’s suitability for certain load cases. However, the mechanical property values, which can be defined by quality indicators, are not the only aspects that have to be considered during the selection of materials. Further technological characteristics that have to be considered as well include fatigue strength, elongation and toughness at break, thermal stability or coefficient of thermal expansion as well as other material properties such as corrosion resistance, formability, separability and joinability and others, which are beyond the scope of this article.
