Krauss Maffei AQC plus at Fakuma 2026 for PX Series

Autonomous quality control Krauss Maffei introduces weight-based injection moulding control at Fakuma

2026-10-12 Source: Krauss Maffei 3 min Reading Time

Related Vendors

KraussMaffei Technologies GmbH

HASCO Hasenclever GmbH + Co KG

BORIDE Engineered Abrasives

AMPCO METAL Deutschland GbmH

Cycle-by-cycle part weighing and automated holding pressure adjustments are central to Krauss Maffei’s new AQC plus quality control system at Fakuma 2026. Alongside its all-electric PX machines, the company will present a side-entry robot concept for high-cavity and cleanroom applications.

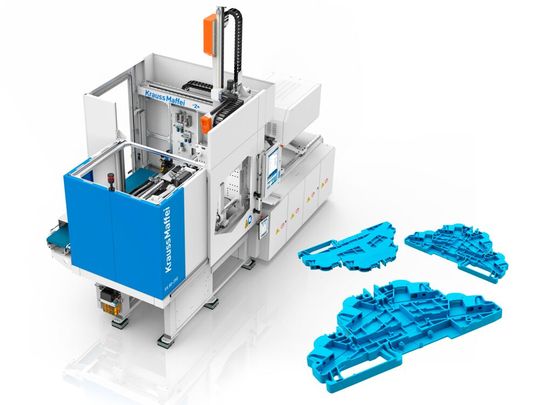

With the new AQCplus (Autonomous Quality Control), Krauss Maffei is introducing a digital solution for autonomous quality control in the injection molding process.(Source: Krauss Maffei) — With the new AQCplus (Autonomous Quality Control), Krauss Maffei is introducing a digital solution for autonomous quality control in the injection molding process.
(Source: Krauss Maffei)

At Fakuma 2026 – Booth 7303 in Hall A7 – Krauss Maffei will present solutions for greater process efficiency, higher quality, and reduced resource consumption in plastics processing. The focus will be on the new all-electric PX series with the new autonomous quality control solution AQC plus, as well as the concept premiere of the LRX plus SE for high-cavaty and cleanroom applications. Krauss Maffei will also showcase system and service solutions covering the entire value chain of plastics production.

The key quality parameter of AQC plus is the part weight. After each injection moulding cycle, the weight is measured by a scale and fed directly back to the machine control system.

Deviations – such as those caused by fluctuating material densities in recycled materials, additives, or fillers – are immediately detected and directly adjusted by autonomously modifying the hold pressure profile within the injection moulding process.

Complementing the proven digital APC plus solution, which adjusts injection moulding processes based on the viscosity index, the new AQC plus function controls the process using the quality parameter “part weight.”

This eliminates time-consuming random sample measurements. Through continuous cycle-by-cycle feedback of the actual value to the machine control system, automated 100-percent inspection is ensured and documented.

Additional benefits of AQC plus: scrap is reduced, process stability is improved, and production with low material consumption and particularly tight weight tolerances is enabled.

Partner project of Arburg, Matriq and Kebo at Fakuma 2026: An Allrounder 570 A produces auto-injector housings with Data Matrix codes applied directly in the mould. (Source: Arburg)

Autonomous production in the smallest footprint

The space-saving production cell of the new all-electric PX 80 (800 kN clamping force) at the Krauss Maffei booth demonstrates a compact, productive, and efficient solution for manufacturing technical components.

The LRX plus linear robot removes the polyamide electronic components from the mould (partner: Wieland Electric), weighs them, and places them on an integrated conveyor belt inside the machine enclosure.

A space-saving mill (partner: Getecha) grinds the sprue and feeds it back into the processing cycle. The CE-compliant system enables significantly higher production density: instead of four machines with linear robots, five systems can be operated on the same floor space.

LRX plus SE for easier side-entry automation

With the new LRX plus SE linear robot, for the first time Krauss Maffei will present a side-entry concept for demanding high-cavity and cleanroom applications with particularly short removal times at Fakuma 2026. The automation solution is based on the proven LRX plus platform and combines high dynamics with a compact system layout for site-entry demoulding.

Within a small footprint, the LRX plus SE offers maximum flexibility in positioning axes as well as additional space for downstream processes such as quality control, packaging, or other medical technology peripherals. Reinforced axes and drives, optimized components, and a cleanroom-compatible design enable high removal speeds and payloads.

A key focus of Asahi Kasei's presence will be materials that enable new approaches to automotive component design and production. (Source: Asahi Kasei)

At Fakuma, a new all-electric PX 160 equipped with a 96-cavity mould from Männer by Spectrix will produce protective caps for insulin pens. The mould partner is an expert in high-precision moulds and needle-valve hot runner systems. Excellent balancing, a compact yet robust design, and high-precision cavities ensure reliably high output with a consistently high part quality.

The exhibit solution demonstrates the perfect synergy between precision mould making, an all-electric injection moulding machine, and compact side-entry automation for efficient and economical production processes in medical technology – for example, through space savings and short demoulding times.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta).

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Cross-technology highlights at the booth

With the guiding principle “Performance. Perfected. For you.” Krauss Maffei’s Fakuma presentation underscores the company’s commitment to offering innovative technologies and solutions in injection moulding and reaction process machinery, as well as extrusion and automation.

Krauss Maffei presents integrated system solutions that are coordinated with one another and complemented by customized service offerings.

Digital solutions, such as the prototype of an AI-based assistant (K-AI) from Social Production, are intended to support customers in their production processes in the future.

The focus is always on maximum cost-effectiveness and precisely tailored solutions for customer requirements along the entire polymer processing value chain.

In addition, the ONI-Wärmetrafo partner booth showcases a compact injection moulding machine from Krauss Maffei’s CX 80 series, which is equipped with a plasticizing unit adaptation and an energy-saving Blue Power Vario Drive.
