According to Mastercam, Multiaxis machining can dramatically increase a shop’s competitiveness. Multiaxis is an add-on for Mastercam Mill 3D, Router 3D, Mill-Turn, and Mastercam for Solidworks.

Related Companies

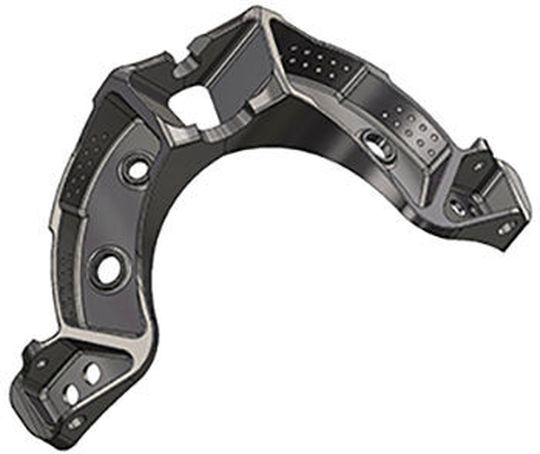

Mastercam Multiaxis offers a wide range of multiaxis machining strategies — both basic and advanced.
Mastercam Multiaxis offers a wide range of multiaxis machining strategies — both basic and advanced.
(Source: Mastercam)

The software add-on Multiaxis improves productivity with simultaneous 4- and 5-axis machining capability for Mastercam. It offers a wide range of multiaxis machining strategies, both basic and advanced. These toolpaths are also useful for advanced control of 3-axis machines.

The new Multiaxis Unified toolpath allows users to select multiple pieces of input geometry to generate the toolpath pattern. Using those geometry choices, the toolpath picks the best algorithm to calculate the path. This single toolpath gives you access to all the surface-based toolpaths, as well as the geodesic toolpath options, in a single interface.

New deburr toolpath enhancements include a new option, number of cuts along edges, which allows users to add multiple cuts to the deburr toolpath, rounding or flattening edges, to create a quality edge on deburred parts. Additionally, the new tilt range options allow operators to limit tilt when machining type is set to 5-axis (simultaneous) or 3+2 axis.

Maintaining climb and conventional machining is critical for surface finish and tool life. Controlling Climb and Conventional Cutting now provides control of climb or conventional cutting while working with surfaces that may require using both sides of a tool. It was previously impossible to maintain this while cutting a curved shape that would require the use of both sides of the tool.

Swarf Milling toolpath enhancements include the Drop tool to floor option which controls whether Mastercam will drop the toolpath down to a floor or retract to the bottom of swarf surfaces. The new Sorting Spiral Multi Cuts option allows multiple slices to be output as a spiral instead of single slices, providing a better finish across the part.

Rotary Advanced toolpath enhancements include the Axis offset option which allow to shift the tool off-center to maintain a better contact point, which extends tool life and improves the machining quality. The new Smoothing options round sharp corners using a perfect of the stepover.

Additional enhancements to Mastercam Multiaxis include:

  • Maintaining a single tool axis orientation with Accelerated Finishing tools, providing optimal tool axis control to minimize or eliminate extra multiaxis movement.
  • The new Point tool to rotary axis option allows you to rotate a toolpath around an offset point instead of the toolpath being fixed to the axis itself, which leads to a better tool contact point.
  • The new Automatic arc lead-in type creates automatic arcs in locations where it can be difficult to determine the correct arc to fit and makes it easier to add arcs to linking moves.
  • New Apply filtering for conversion generates a more efficient toolpath by filtering incoming toolpaths to reduce size and noise.
