National record The largest injection moulding machine in Switzerland

Source: Krauss Maffei Reading Time: 3 min

Related Vendors

Containers for today's logistics have to be stackable, feature IML barcodes, integrated RFIDs and, of course, the logo of the company that owns them. Switzerland's Georg Utz company has specialised in this application, and for this reason it has commissioned the country's largest injection moulding machine, a Krauss Maffei MX 4000-75000.

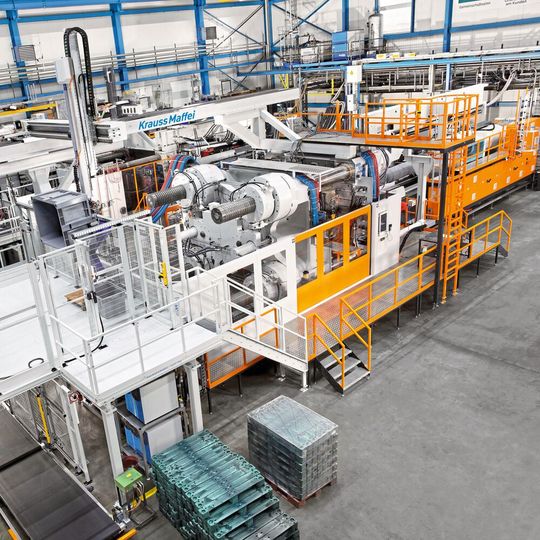

National record: with a clamping force of 40,000 kN, the Krauss Maffei MX 4000-75000 is Switzerland's largest injection moulding machine.
National record: with a clamping force of 40,000 kN, the Krauss Maffei MX 4000-75000 is Switzerland's largest injection moulding machine.
(Source: Krauss Maffei)

At eight locations on three continents, Utz produces solutions for in-house and external logistics. Recently, the company from Switzerland commissioned the largest injection moulding machine in the country to date. The new machine with a clamping force of 40,000 kN will allow the manufacturer to use stack and multi-cavity moulds and thus increase production volume. As a global player, Utz has over 1,350 employees and state-of-the-art production locations in Germany, England, France, Poland, China, the USA and Mexico. With an export share of around 40 percent, Utz Switzerland delivers its products primarily to Italy, Austria, Eastern Europe, the Scandinavian countries and Oceania.

The family-owned company runs three shifts at its plant on the new MX 4000, producing approximately 20 different products with weights of up to 50 kilograms, including pallets, boxes and Paloxes. The material is usually a polyolefin such as PP or HDPE, but ABS or technical plastics are also sometimes used.

The heavyweight machinery traveled on a total of 22 trucks from Munich to Bremgarten (about 15 kilometers west of Zurich): one for the machine bed, each platen, one per two tiebars and one each for many other components. After twelve weeks of set-up, the MX 4000 went online on the requested target date and replaced an older machine with a clamping force of 27,000 kN that was energy-inefficient, offered limited technical options, had only a simple linear robot and had insufficient energy efficiency.

The new model features a sophisticated two-story automation system that implements the subsequent process steps such as the application of RFIDs, IML barcodes and logos plus post-processing and quality assurance within the cycle time. The two Krauss Maffei LRX robots right at the machine have twelve-meter-long Z-axes and thus a particularly large working radius.

Increasing use of recycled material

The percentage of recycled material is currently 35 percent and Utz operates its own recycling sites for this purpose, for example a mill in Switzerland with a throughput of 1.2 tons per hour. Plans call for the percentage of recycled material to increase to 80 percent as part of the Utz Group's global climate strategy. This is where one function of Krauss Maffei machines plays a special role: APC plus. Based on the melt viscosity, APC plus controls the changeover point and the holding pressure level and thus ensures parts with extremely consistent weight. This balances out batch fluctuations that result from different raw materials and percentages of recycled material.


According to Andreas Schlegel, Head of Operations/ Managing Director at Georg Utz, the important factor is that this new investment opens up a wider gateway for material purchasing. In the case of regrind, for example, it is also possible to buy different quality grades or polyolefin blends that are more readily available. APC plus has been used on the smaller machines for two years, and in this time, scrap has decreased significantly.

Digital research project

Utz is currently using another of Krauss Maffei's digital products to develop a predictive quality solution in collaboration with the Institute for Materials Technology and Plastics Processing (IWK) of the Eastern Switzerland University of Applied Sciences. The DataXplorer can save up to 500 signals per second from the machine and other sensors and display them as curves. The goal now is to determine how many of these are needed in order to predict good components reliably.

This latest purchasing decision is based on a long-standing relationship based on mutual trust. The group already operates a total of 50 injection moulding machines from Krauss Maffei, 22 of which are running in Switzerland at clamping forces starting at 800 kN.
