Braunform Multi-component moulds for virtually every application

Editor: Briggette Jaya

Multi-component moulds from injection-mould expert Braunform in Bahlingen, Southwest Germany, is said to enable producing components of different materials in just one-process step.

Related Companies

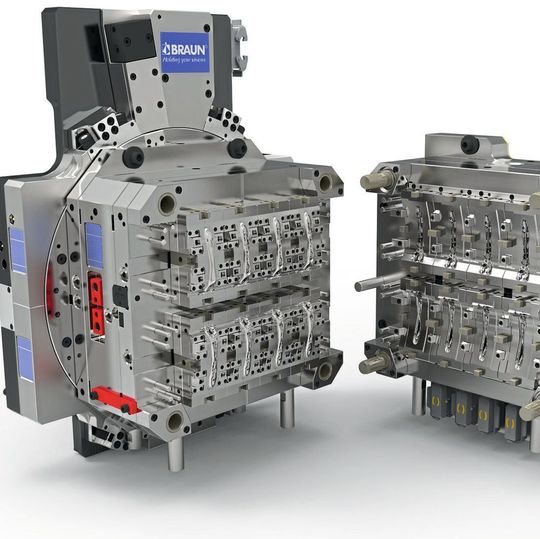

The multi-component mould from Braunform is said to be able to produce components of different materials in just one process.
The multi-component mould from Braunform is said to be able to produce components of different materials in just one process.
(Source: Braunform)

Multi-component moulds from Braunform produces components of different materials in just one-process step, the company says. This, according to the company, is particularly efficient in combination with its rotary table technology, namely Braunform's classic line and vision line series. Both lines offer six standardised supply systems. While the classic line offers good price-performance ratio, the latter is a customised series with special options, thus offering solutions for virtually every application.

The hydro classic line has a hydraulic motor and offers a rotary angle of 180° continuous rotation. It has a hydraulic lock at the end of travel. The servo classic line has an electric servo motor, a rotary angle of 180° continuous rotation and an end of travel secured by servo drive.

The entire classic line and rotary tables ranging from BRT 1100 to BRT 1400 with an electric servo motor or hydraulic motor can be complemented with options, which, as such, comprise the Braunform vision line. These options include individual ejector layouts; rotary angles of 120° (for 3 stations) + 90° (for 4 stations); additional water, pneumatic and hydraulic circuits; direct water supply in moulds; core back systems; integrated ejectors; electrical signal transfers; encoders for positioning (BRT 450-800); gliding support for machine saddles; insulating plates; custom-made sizes and designs as well as highly heat-resistant designs.
