Sumitomo Electric Expands High-Efficiency Roughing High-Feed Cutter Lineup

High-efficiency machining Sumitomo Electric expands high-feed cutter lineup for enhanced roughing efficiency

2024-07-07 Source: Sumitomo Electric Industries 1 min Reading Time

Related Vendors

Japanese cutting tool expert Sumitomo Electric Industries has announced the expansion of its high-efficiency roughing high-feed cutter lineup, the SEC-Sumi Dual Mill DMSL series and DMSW series. The expanded range introduces 25 new items to the market.

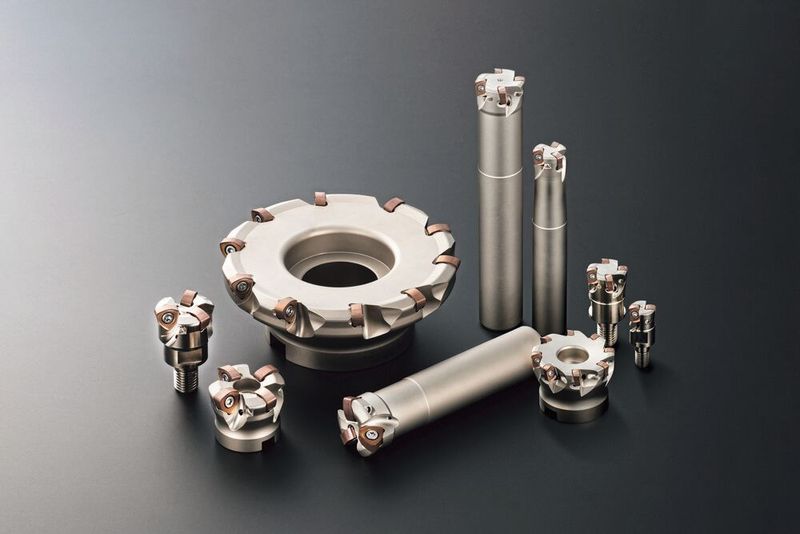

SEC-Sumi Dual Mill DMSL series / DMSW series(Source: Sumitomo Electric Industries) — SEC-Sumi Dual Mill DMSL series / DMSW series
(Source: Sumitomo Electric Industries)

The growing focus on green transformation (GX) within the automotive and various industrial sectors has driven an increased demand for high-efficiency machining tools. Sumitomo Electric first responded to these industry needs with the launch of the SEC-Sumi Dual Mill DMSW series in June 2021, followed by the DMSL series in March 2023, which supported diameters up to ø16 mm. The latest expansion introduces cutter diameters ranging from ø35 mm to ø100 mm, enhancing versatility for a broader range of cutting conditions in automotive, aircraft, industrial machinery and mould manufacturing applications.

The expanded series supports high-efficiency machining with ultra-high-feeds and large depths of cut. The complex arc-shaped cutting edge allows for a smaller cutting angle and larger depth of cut, enabling ultra-high-feed machining at a maximum of 3.5 mm per tooth in conditions where large depths of cut are not possible. In scenarios with low feed rates, the tool can achieve a large depth of cut at 1.5 mm per tooth. The design includes a small cutting angle that directs the cutting force towards the back force direction, ensuring stable machining without chatter, even when the tool is used with a long overhang. Furthermore, the wiper flat effect generated by the complex arc-shaped cutting edge minimizes deterioration of the machined surface finish, even under ultra-high-feed conditions.
