Printed circuit board machining with diamond and solid carbide tools

Cutting, grooving, milling Printed circuit board machining with diamond and solid carbide tools

2023-10-08 Source: Lach Diamant 1 min Reading Time

Related Vendors

Jakob Lach GmbH & Co. KG - LACH DIAMANT

HASCO Hasenclever GmbH + Co KG

Jongen Werkzeugtechnik GmbH

DIPROFIL Diamantprodukter AB

Cutting tool manufacturer, Lach Diamant introduced its portfolio of diamond and carbide tools at productronica in 1977. At this year's Productronica, visitors will see an updated range of tools tailored to the efficient production of printed circuit boards for the world's leading electronics manufacturers.

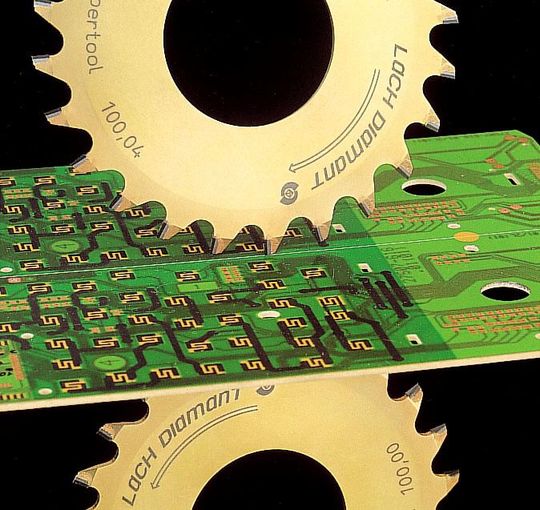

Lach Diamond saws for cutting – scoring – milling of PCB circuit boards(Source: Lach Diamant) — Lach Diamond saws for cutting – scoring – milling of PCB circuit boards
(Source: Lach Diamant)

These include depanelling saws, which can precisely cut PCBs in mass production, achieving cutting widths from 0.3 mm. There are also toothed tools with fine pitches down to 1.4 mm.

As for scoring tools: Initially these were mainly used for single layer boards. However, as technology has advanced, they can now handle a wider range of materials. Today's materials include fibreglass, ceramics and hybrid materials. In response to these developments, the company has introduced high performance PCD scoring saws with improved durability.

Gallery

Special cutting saws for stressless depanelling(Source: Lach Diamant)

Drebo-Blue-Cut PCD scorer – “running” world champion for scoring PCB and aluminium IMS circuit boards(Source: Lach Diamant)

Lach Diamant ensures that its standard scoring saws, unique models and saws with different edge geometries are readily available or can be supplied promptly.
