A hot runner system is a crucial component in modern plastic injection moulding processes. It is designed to improve efficiency, reduce waste, and enhance the quality of plastic parts and products. In this article, we will explore the key features, components, advantages, and applications of the hot runner technology.

The key components of a hot runner system include the manifold, nozzles, heaters, thermocouples and controller. The manifold serves as the primary distribution channel for the molten plastic. The material is then distributed to individual nozzles connected to the mould cavities.

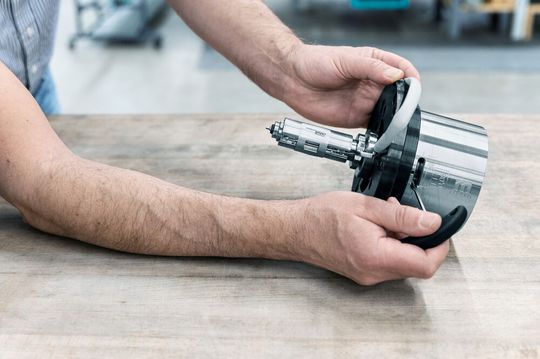

The nozzles are responsible for delivering the molten plastic into the mould cavities. These nozzles are heated to maintain a consistent temperature and ensure proper flow.

Key features and advantages of hot runner systems

• Precise temperature control: Hot runner systems maintain consistent and precise temperatures. This is critical for producing high-quality plastic parts. They use electric or hydraulic heaters to keep the plastic in a molten state from the machine nozzle. This ensures that the plastic remains in this state until it reaches the mould cavity.

• Reduced material waste: Unlike cold runner systems, hot runner systems eliminate the need for runners (the melt channels that guide molten plastic to the mould cavity). This significantly reduces material waste and cycle time and is especially important for expensive or high-performance plastics.

• Enhanced part quality: When molten plastic cools too quickly as it flows through the mould, weld lines and jetting can occur. Hot runners help prevent issues, leading to improved part aesthetics and mechanical properties.

• Faster cycle time: Hot runners enable shorter cycle times by removing the need for runners to cool down. This translates to increased production efficiency.

• Flexible design: You can customise hot runner systems to suit various mould and part designs. They are available in various configurations, including single, dual, and multi-cavity systems.

Disadvantages of hot runner systems

• Higher cost: Hot runner systems are more complex that their cold runner counterparts. Accordingly, these machines are more costly to acquire and maintain. Users of hot runner systems see them as a worthwhile investment, nevertheless.

• Operational complexity: Hot runner systems feature more elaborate customisation options. This can lead to more complex on-boarding and learning procedures for machine operators.

• Heating: When using a hot runner system, you need additional internal or external heat sources for heating. You must factor in the advantages and disadvantages of each type of heat source.

Applications of hot runner systems

A wide range of industries, including automotive, medical devices, consumer goods, electronics, and packaging, use hot runner systems. They are ideal for producing complex parts, thin-walled components, and parts with high cosmetic requirements.

In summary, a hot runner system is a sophisticated and efficient technology used for plastic injection moulds. Hot runner systems contribute to reduced material waste, improved production efficiency, and the production of high-quality plastic parts. This is achieved by eliminating runners and maintaining precise temperature control while enhancing part quality. These systems find widespread use in industries with a high demand for precision and cost-efficiency.
