NSK debuts Robustdyna bearings and eco-friendly grease at EMO Hannover

Bearing solutions NSK debuts Robustdyna bearings and eco-friendly grease at EMO Hannover

2023-09-11 Source: NSK 3 min Reading Time

Related Vendors

Machine tools like milling and turning centres must minimise processing time and maximise output, all while producing high-quality finished parts to tight tolerances. Bearings are central to this premise. Visitors to Booth C42 in Hall 7 at EMO Hannover 2023 (18-23 September) will find the perfect platform for exploring NSK’s latest bearing solutions.

With the Sursave cage, users can achieve energy savings, low temperature, small NRRO, high speeds, low vibration and low noise.(Source: NSK) — With the Sursave cage, users can achieve energy savings, low temperature, small NRRO, high speeds, low vibration and low noise.
(Source: NSK)

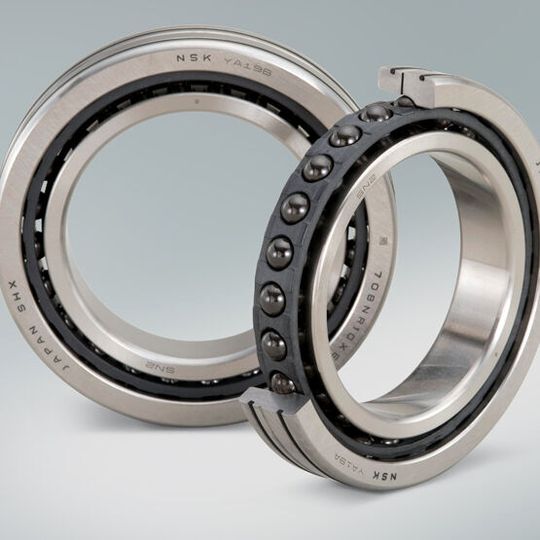

At the exhibition, NSK will give an important European debut to its Robustdyna ultra-high speed, high-load capacity angular contact ball bearings. Ideal for machine tool spindles, the advanced new bearings enable highly versatile machining by delivering excellent performance in both roughing and finishing operations. The use of larger bearing balls boosts maximum load capacity by up to 15 percent in comparison with the previous-generation solution to help ease the machining of challenging workpiece materials such as titanium, Inconel and composites. With fatigue life (dynamic load rating) extended by up to three times, using Robustdyna supports both heavy cutting and high-speed performance.

Thanks to internal design optimisation, a further benefit of Robustdyna is 15 percent higher impact resistance (static load rating), reducing the risk of bearing damage in the event of an unexpected collision between the spindle, cutting tool, work-holding device or component. This attribute contributes to the long-term, stable operation of the spindle, avoiding unplanned downtime. Furthermore, the use of NSK's proprietary SHX steel enables ultra-high speed performance of three million n x dm for completing finish-machining operations in short cycle times.

Gallery

The VCM-3 condition monitoring system (CMS) will be in live action on the NSK booth at EMO.(Source: NSK)

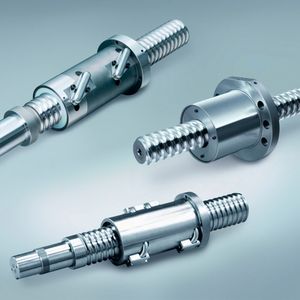

NSK S-HTF series is the world’s first ball screw application involving Tough Steel technology.(Source: NSK)

Another major introduction at the show will be NSK’s Robust GRD grease for high-speed spindle bearing applications. This environmentally friendly lubricant improves seizure resistance by up to five times compared with the company’s conventional grease, contributing to higher productivity and the long-term stable operation of machine tools. As a further benefit, grease lubrication offers energy savings compared with oil-air lubrication techniques.

Elsewhere on the booth will be NSK’s Sursave (TSR) bearing cage for angular contact ball bearings fitted to the main spindle of machine tools. Although displayed previously at EMO, the cage has been unavailable until now. With the outer-ring-guided, PPS resin Sursave cage, users can achieve energy savings, low temperature, small NRRO (non-repeatable runout), high speeds, low vibration and low noise. Generating 20 percent less friction than conventional bearings leads to energy savings and higher accuracy by reducing the thermal expansion of the shaft. This reduction in friction is thanks to optimised clearance, guiding width and surface structure. The latter has a big impact on the lubricating film, while grease life is also longer due to better sliding performance and lower temperature.

The new NSK DH/DS series delivers over twice the running distance of the company’s conventional NH/NS linear guides. (Source: NSK)

NSK will show cut models of various bearings at EMO, allowing visitors to see the build quality and design configuration for themselves. Among the cut models will be 10 NSK angular contact ball bearings of different specifications but all with the same 70 mm bore diameter.

The intention is to highlight various characteristics, such as high speed and load ratings, facilitated by internal design changes like curvature, ball size, materials and so on. NSK will also showcase three different cage types and four different lubrication methods for these bearings.

Rounding up the display on machine tool bearings, NSK will exhibit a selection of high-speed motor bearings (special deep groove ball bearings with special cages). The booth will also feature thin angular contact ball bearings from the company’s BT series to highlight an optimal solution for robots.

New among the NSK ball-screw portfolio will be the company’s next-generation offer for high-accuracy machine tools, which has the capability to improve productivity by reducing or eliminating the need for subsequent workpiece polishing/burnishing. Also new will be NSK’s low-temperature ball screws, which generate 45 percent lower friction loss compared with conventional systems, while a further new product will be NSK’s HFT super-long life series that offers up to double the life in high-load drive applications.

Other NSK ball screws will include: the S-HTF range, which features the company’s proprietary Tough Steel to withstand high loads and contamination; the high-durability series that supresses wear; and the DIN-standard high-speed, low-noise range.

As a point of note, visitors will have the opportunity to see a live demonstration of the VCM-3 condition monitoring system (CMS), produced by Brüel & Kjær Vibro, a member of the NSK group and one of the leading worldwide suppliers of condition monitoring solutions for rotating machinery.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Notable among the linear-guide exhibits at EMO will be NSK’s new DH/DS long-life series that delivers over twice the running distance of the company’s existing NH/NS solution. Also appearing on the booth will be NSK’s proven RA series roller guides with extremely dust-resistant seals to prevent the ingress of contaminants.

(ID:49694613)
