Mastip's New MX09 Nozzle: High-Precision Moulding Solution

Hot runner nozzles Mastip expands MX series with compact MX09 nozzle for tight cavities

2025-07-28 Source: Mastip 1 min Reading Time

Related Vendors

Mastip Technology Ltd.

HASCO Hasenclever GmbH + Co KG


Meusburger Georg GmbH & Co. KG

Ramada Acos

Designed for high-precision moulding in tight spaces, Mastip’s new MX09 nozzle expands the MX Series with a compact, thermally stable solution for close cavity applications.

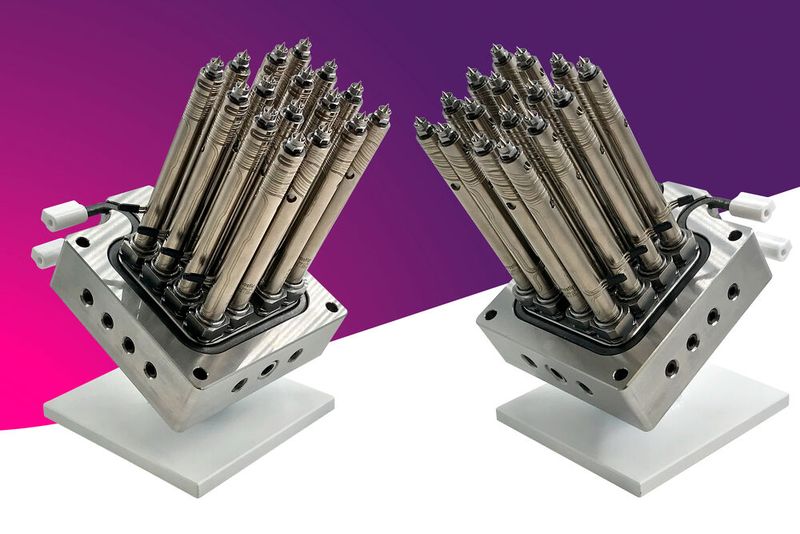

Mastip’s MX09 nozzle combines advanced heating technology with compact dimensions for demanding applications.(Source: Mastip) — Mastip’s MX09 nozzle combines advanced heating technology with compact dimensions for demanding applications.
(Source: Mastip)

Mastip announces that the MX Nozzle Series, well known for its high performance in multi-cavity and hot half systems, has expanded to include the recently released MX09 nozzle range.

The MX09 nozzle has been tested with a range of materials and high injection pressures, demonstrating enhanced reliability, a consistent temperature profile, and improved thermal stability through the use of an advanced micro coil heater and thermocouple design.

With a minimum pitch of 20 mm, a pocket of 14 mm, a nut diameter of 7 mm and a range of extended tips available, the MX09 can fit into very tight spaces.

Mastip has developed the MX09 nozzle to meet customers’ demands for a small pitch, high value moulding solution for the packaging, caps and closure and medical markets.

MX09 is available in H13 Steel (F1), in both front and rear loading configurations, with standard lengths varying from 55-175 mm.

The MX nozzle range now includes the 09, 13, 16 and 19 series to offer a comprehensive solution for different industry requirements.

Mastip solutions feature advanced thermal technology designed to support high-quality component production and are complemented by a global service and support network.

(ID:50496486)
