Premium Tools for Metalworking Industry by Inovatools

From universal to steel to trochoidal Inovatools with new high-performance cutting tools

2024-09-23 Source: Inovatools 4 min Reading Time

Related Vendors

The tool manufacturer Inovatools from Kinding-Haunstetten offers the metalworking industry a broad portfolio of premium tools in clearly defined tool families and consistently focuses on quality rather than quantity. At AMB, the tool specialists presented five new high-performance tools for different materials,.

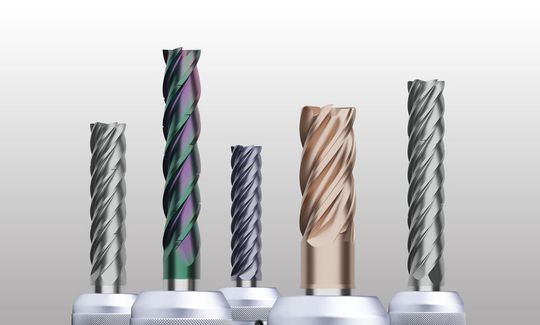

At AMB, Inovatools presented new high-performance tools for different materials, and recommend them as a particularly powerful 1st Choice selection in the respective cutting applications.(Source: Inovatools Eckerle & Ertel) — At AMB, Inovatools presented new high-performance tools for different materials, and recommend them as a particularly powerful 1st Choice selection in the respective cutting applications.
(Source: Inovatools Eckerle & Ertel)

Modern machining challenges require high-performance tools that enable the user to produce the highest quality in an economical and resource-saving manner. To make it easier for users to find the optimum, customised tool for them, Inovatools recommends particularly powerful tools from the Inovatools tool families as a first choice selection. These are tool solutions from 1st Choice Steel Milling, 1st Choice Steel Drilling, 1st Choice Inox Milling, 1st Choice Inox Drilling, 1st Choice Aluminum, 1st Choice Graphite and GRP/CFRP and 1st Choice Titanium. Marcus Schubert, Head of Sales and Marketing at Inovatools: “Depending on the area of application, each tool is optimally adapted to the special requirements of the materials to be machined in terms of carbide, edge preparation, cutting geometry, chip removal and high-performance coating. 'First Choice' tools therefore enable shorter production times and longer tool life, resulting in lower workpiece and machine costs. Practical results testify this.”

Continuous expansion of the tool families

Inovatools is continuously expanding its portfolio of individual tool families, and presented the new Starmax Super Finish VHM finishing cutter at AMB (AN: 746 ...). for universal use in a wide range of materials and applications such as steel, stainless steel, cast materials, non-ferrous metals and even plastics. With its six cutting edges, the high-performance tool was developed for finishing workpieces to achieve extremely smooth surfaces. The Starmax Super Finish is therefore particularly suitable for applications where maximum precision and surface quality are required, for example in tool and mold making or in the aerospace industry.

Gallery

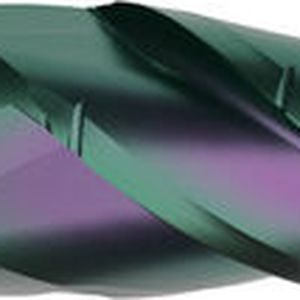

The new VHM finishing cutter Starmax Super Finish for universal use in a wide range of materials and applications.(Source: Inovatools Eckerle & Ertel)

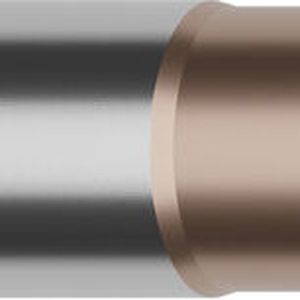

With the VHM torus cutter HPC Fightmax INOX Z5, Inovatools is expanding the 1st Choice range of INOX milling cutters.(Source: Inovatools Eckerle & Ertel)

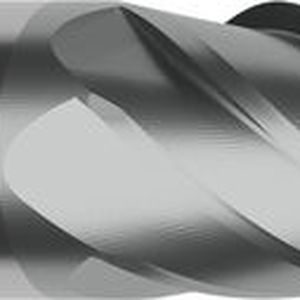

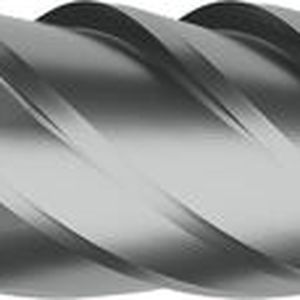

In the area of steel and Inox machining, Inovatools presented the VHM dynamic milling cutters TSC 4xD (above) and 5xD, which are specially designed for dynamic milling strategies such as TSC.(Source: Inovatools Eckerle & Ertel)

Gallery with 6 images

In the 1st Choice Inox milling program, Inovatools is expanding its range with the VHM torus milling cutter HPC Fightmax Inox Z5 (AN: 295...) with the Duocon smooth coating. It is optimized for high feed rates and cutting speeds, enabling fast and efficient material removal and precise machining of stainless steel and other tough materials. With five rounded cutting edges (torus shape), it offers high performance, reduced vibrations and a longer tool life when machining these demanding materials. Marcus Schubert: “Among other things, the tool has to contend with edge zone hardening and the high toughness of the material. As the materials are poor heat conductors, rapid chip removal is of great importance. In addition, the tool must be designed in such a way that the chips that tend to stick and jam can drain off safely. We have optimized the Fightmax Inox Z5 to meet these challenges. The tool design with five cutting edges allows an increased cutting frequency, minimizes vibrations during machining and offers an excellent balance between a high machining rate and metal removal rate, as well as very good surface quality, which is particularly advantageous when machining these hard or tough materials.”

New TSC milling cutters: Impressive metal removal rates at high speed

Trochoidal Speed Cutting (TSC) is the process of the hour — especially when it comes to profitably producing high-quality large cross-sections with low cutting forces at high speeds, even under critical operating conditions. Compared to conventional full slot milling, the special trochoidal machining path helps to achieve a significantly larger cutting diameter using smaller tool diameters. Moreover, the TSC tools can be used evenly over their entire cutting edge length. The bottom line is that the user achieves significant productivity benefits when machining even difficult-to-cut materials. Inovatools presented 3 new high-performance trochoidal tools at AMB:

In the area of steel and Inox machining, Inovatools presented the VHM dynamic milling cutters TSC 4xD (AN: 599 ...) and 5xD (AN: 600 ...), which are specially designed for dynamic milling strategies such as TSC. For instance, these milling cutters can be used for deeper cuts without compromising the stability or efficiency of the milling process. Marcus Schubert: “The special Varocon Plus smooth coating not only aids quick removal of chips, but also makes the high performance milling cutter extremely temperature-resistant and wear-resistant even in large intervention depths. This is a prerequisite for its long service life. These trochoidal milling cutters are designed to work efficiently at lower radial cutting depths and higher feed rates. With their six teeth, they typically have more cutting edges than conventional milling cutters, which results in a more even load distribution and less vibration."

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

For larger intervention depths, even the new VHM dynamic milling cutter TSC 5xD (AN: 2419...) is designed for aluminum processing. This 1st Choice recommendation extends the range of applications of the ta-C program from Inovatools.

The chip spaces or flutes are designed such that the chips drain off quickly. This prevents the formation of built-up edges and thus premature clogging of the tool. The ultra-hard thin-layer carbon coating ta-C is used to counteract the abrasive effect of silicon. The special, extremely smooth high-performance coating is highly wear-resistant and low-friction, and supports excellent chip removal. Marcus Schubert: “The high resistance to abrasive wear and the low friction between the tool cutting edge and chip ensure a very long tool life”

(ID:50176471)
