New Precision Inserts for Horn's M475 Grooving and Cut-Off Milling System

Expanded range New additions to Horn’s grooving and cut-off milling system

2024-09-03 Source: Horn 1 min Reading Time

Related Vendors

Horn's M475 grooving and cut-off milling system now offers even more precision with new, smaller inserts available in 3 and 4 mm widths. Designed for optimal performance with a new carbide grade and advanced geometry, these tools deliver superior durability and efficiency, especially in high-speed steel machining.

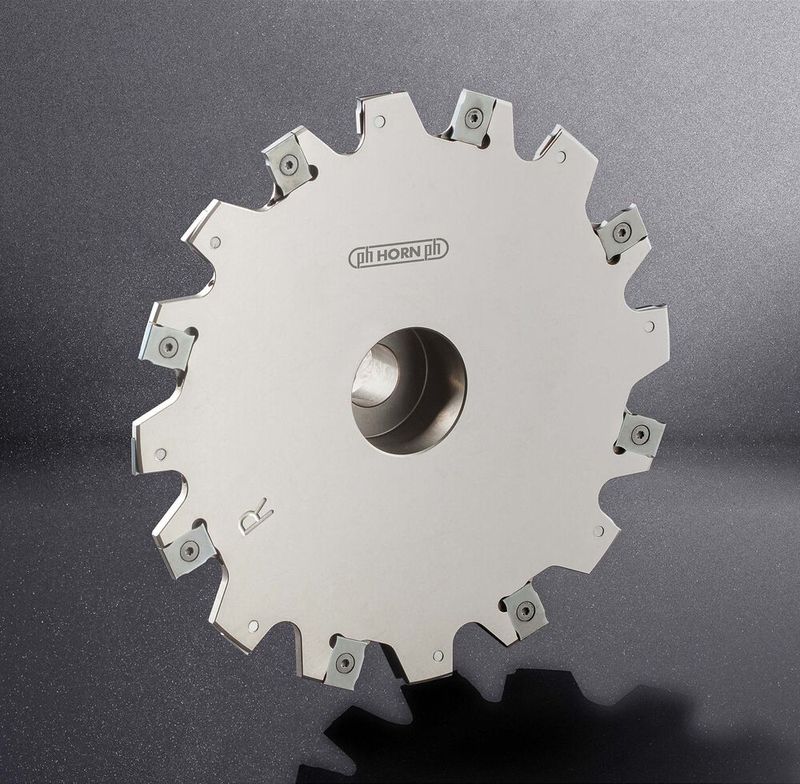

Horns' expanded M475 tool system delivers economical, highly productive groove milling and cut-off performance.(Source: Horn) — Horns' expanded M475 tool system delivers economical, highly productive groove milling and cut-off performance.
(Source: Horn)

Cutting tool manufacturer Horn has extended downwards in size its M475 grooving and cut-off milling system. Formerly a user could select a grooving width of either 5, 6 or 8 mm, but now smaller inserts with a cutting width of 3 or 4 mm are available. I

The M475 system employs precision-ground, indexable inserts with four cutting edges. Positive geometry and a round chip breaker groove together with a new carbide grade, RC4G, deliver economical, productive machining performance. High toughness and hardness enable the machining of steels at elevated cutting speeds and also leads to significantly increased insert life. The cutter bodies are supplied from stock as side, shell and screw-in milling cutters, the two latter variants being equipped for internal coolant supply.

Side milling cutters range in diameter from 80 mm to 200 mm and have cutting widths of 3, 4, 5, 6 or 8 mm. As shell mills, the tools are available in diameters from 63 mm to 200 mm and with identical grooving widths. The screw-in cutters are for a groove width of 5 mm and may be ordered in diameters from 40 mm to 63 mm as standard. The effective number of teeth of depends on tool diameter and ranges from two to 13. Special surface treatment of the tool body offers protection against abrasion from chips.
