Horn's New DG Series: Modular Milling System for Efficient Manufacturing

Accurate changeover Horn introduces modular milling system with interchangeable heads

2025-03-31 Source: Horn Cutting Tools 1 min Reading Time

Related Vendors

Horn has launched the DG series, a modular milling system featuring a precise interface between the solid carbide cutting head and the shank. Designed for quick and accurate tool changes, the system reduces setup times and manufacturing costs.

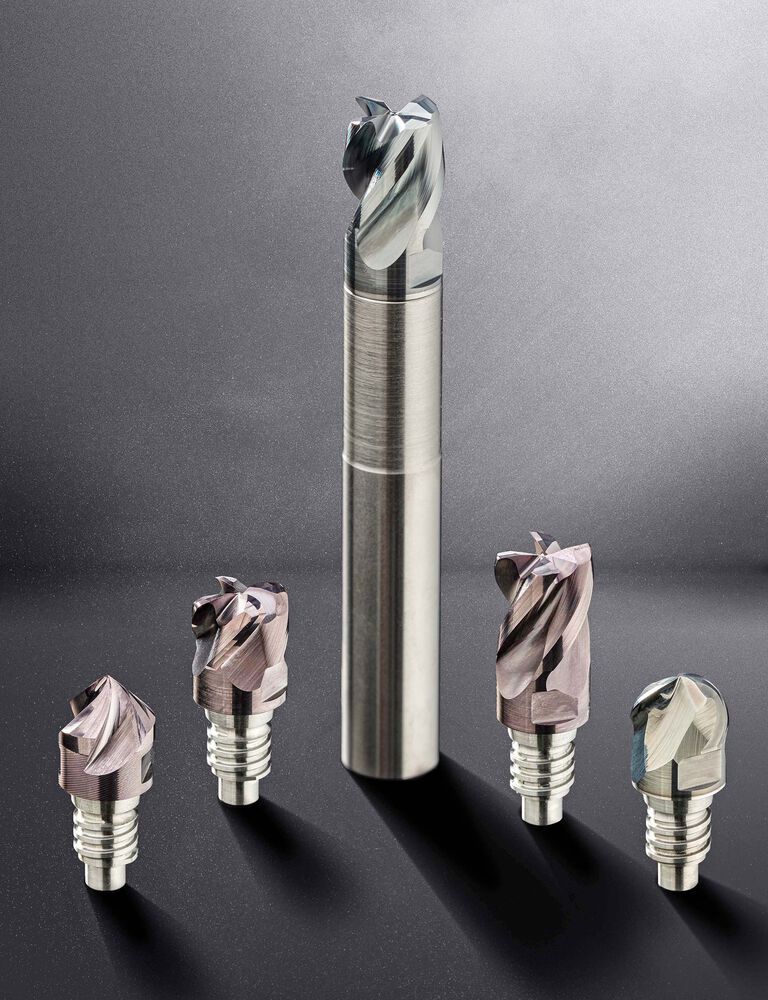

The cutter shanks of the Horn DG system are available in solid carbide or steel.(Source: Horn) — The cutter shanks of the Horn DG system are available in solid carbide or steel.
(Source: Horn)

Cutting tool manufacturer Horn has introduced a new, modular, interchangeable-head milling system. The DG range has a stable interface between the solid carbide, monobloc cutting head and the shank, allowing accurate changeover to within microns. The shank is either solid carbide or steel and has an internal coolant supply.

The economical, resource-saving tool solution achieves high precision through the use of a guide pin, a trapezoidal thread and a face-and-taper contact. The design reduces the cost of manufacture and shortens set-up times for the user. Modularity ensures rapid changeover to a different cutting head, either standard or custom.

Horn stocks the milling system in standard diameters of 10, 12, 16, 20 and 25 mm. Numerous cutter shapes for the most common machining tasks are also available from stock. The user can choose an interchangeable head with a cutting edge length of either 0.5 x diameter or 1 x diameter to suit the application. Horn offers the cutting heads in new carbide grade, RC4P, for productively and economically machining material groups P (steels) and K (cast irons).
