E-Z Lok Threaded Inserts for Metal: Assortment & Installation Kits

Threads Advanced threaded inserts and tools for enhanced durability and ease of installation

2024-04-15 Source: E-Z Lok 1 min Reading Time

Related Vendors

The manufacturer and master distributor of threaded inserts for metal, plastic and wood, E-Z Lok now offers Threaded Inserts for metal; including both Assortment and Installation kits.

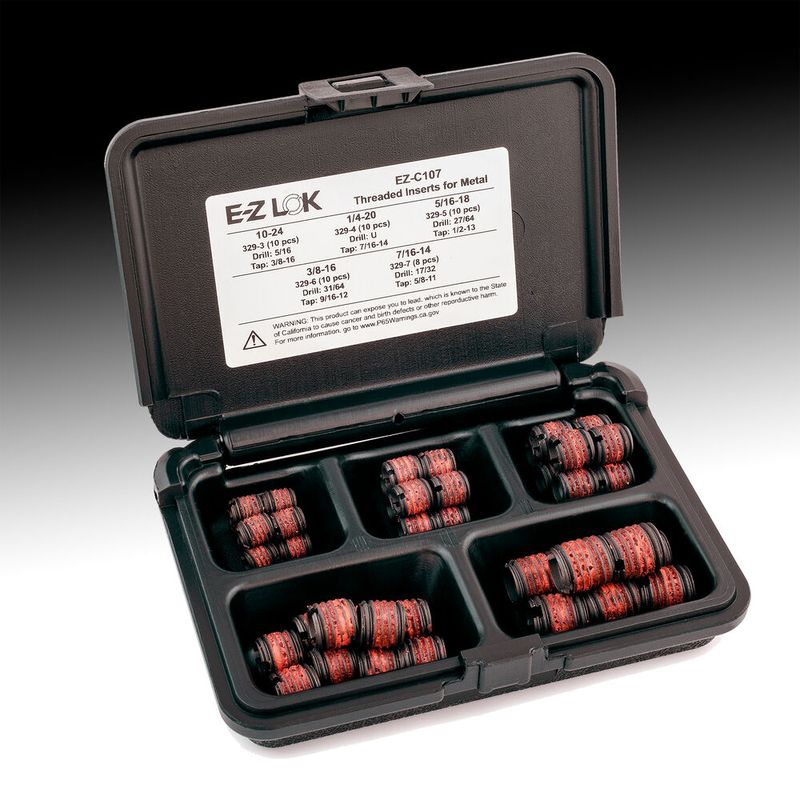

Assortment kits are equipped with inserts in a variety of sizes.(Source: E-Z Lok) — Assortment kits are equipped with inserts in a variety of sizes.
(Source: E-Z Lok)

The inserts from E-Z Lok are ideal for repairing or reinforcing threaded holes in soft metals such as aluminium, magnesium and cast iron. External threads are standard size and pitch, so they can be installed with standard drills and taps. Solid wall threaded inserts are installed with a screwdriver, bolt/jam nut (except IC series) or optional power drive tool.

These inserts will not back out or vibrate loose. The pre-applied, microencapsulated adhesive begins to set immediately upon installation and the newly installed insert is fastener-ready in 3-5 minutes. Despite their firm hold while in use, E-Z Lok (Solid Wall) threaded inserts for metal can be removed with a bolt extractor, which overcomes the resistance to torque-out produced by the adhesive. They can also be removed by heating the insert to a temperature above 149°C, at which point the adhesive will release.

Gallery

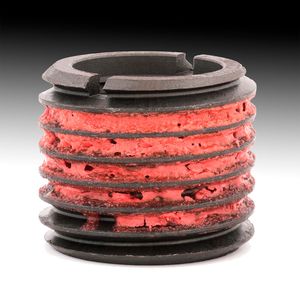

The inserts are available in Carbon Steel.(Source: E-Z Lok)

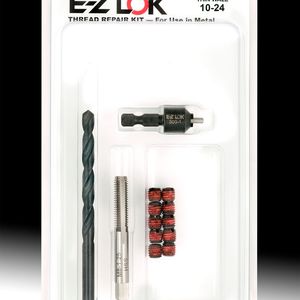

Installation kits are specifically designed to make threaded insert applications and repairs as simple as possible.(Source: E-Z Lok)

E-Z Lok inserts are available in Thin Wall, Standard Wall, Extra Heavy Wall, Screw Locking and Automotive designs. They are available in Carbon Steel and Stainless Steel. Stainless steel threaded inserts are perfect for applications requiring additional corrosion resistance, as well as food, beverage and other clean-critical applications.

Assortment kits are equipped with inserts in a variety of sizes. They provide an easy-to-store solution for thread repair, giving maintenance teams added convenience. Installation kits are specifically designed to make threaded insert applications and repairs as simple as possible. These feature a drill, tap and installation tool. CAD files on this product can be downloaded in over 100 file formats from the E-Z Lok website.
