Installation of a Roeders 5-axis machining centre at Circle in Weilmünster, Germany, has transformed the engineering service provider's ability to deliver machined prototypes and small batches of components in short lead times.

Circle started out in 1998 as a design service provider, initially to the automotive industry and subsequently to the medical, aerospace, optical and other industries. Customers asked mainly for 3D-printed samples, which were sourced from third parties that used stereolithography or selective laser sintering.

In 2007, the company's first milling machine was installed for producing subtractively-machined samples of metal parts, mostly of aluminium but also of steel, stainless steel and titanium. This service has been expanded consistently and the company now has three milling centres and four lathes, including a turn-mill centre. In addition, injection moulding machines and equipment for vibratory finishing and shot blasting are in use.

Gallery

Dipl-Ing Heiko Legner, managing director of Circle commented: “Our speciality is the production of very high quality, complex, demanding turned and milled parts to tight tolerances in quite small quantities. Examples are components for luxury cars and aircraft interiors in first-class areas, as well as for medical apparatus and high-end measuring systems.”

Engineering expertise is provided by Circle prior to production of a part. Everything is scrutinised, from the computer-aided design file supplied by the customer through workholding and machining strategies to identifying cutters that can be used to achieve a certain surface quality. Circle engineers help to achieve optimal results, technically as well as economically. Customers appreciate the advantages of this overall package.

Many of the products Circle manufactures have to meet exceptionally high demands in terms of surface quality, not only across flat and freeform areas but also at transitions after a tool change or workpiece reclamping. So when the procurement of another machining centre was due in 2021, these criteria figured prominently in the list of requirements.

The visual quality of the surfaces after machining was important, but it was also crucial that no witness marks should be visible after anodising. With the machines in operation at the time at the Weilmünster factory, it was often necessary to polish for up to three days after completion of milling to ensure acceptable results for a customer.

Superior surface quality and rapid after-sales response

In its search for a new machining centre, Circle looked at numerous manufacturers. The number of candidates was initially narrowed down to seven and finally to a shortlist of three, including Roeders. All were asked to produce a test part from free issue material to Circle's precise specifications, which included the NC program and tools. For the production of a second workpiece, the machine manufacturers were invited to attempt a fast cycle time and achieve a high quality result using their own software and tools.

Nikolaj Sterzer, production manager at Circle said: “After Roeders had produced by far the best result in terms of surface quality in these trials, we evaluated the machine's endurance at the manufacturer's premises in Soltau. It underwent a period of extremely hard roughing using a 16 mm milling cutter and also passed this test well. At the same time, we were able to establish which of the spindle options best suited our requirements.”

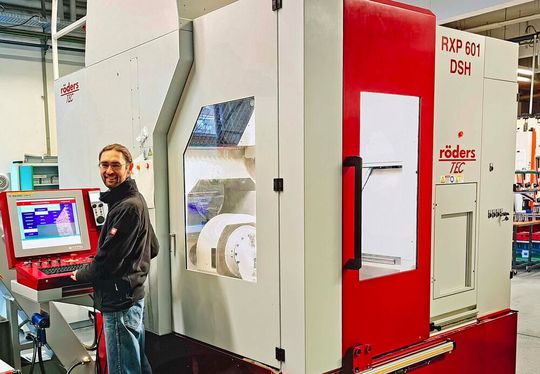

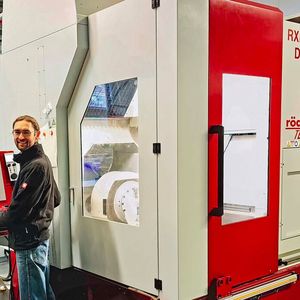

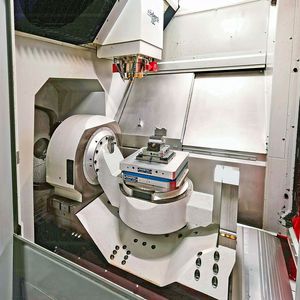

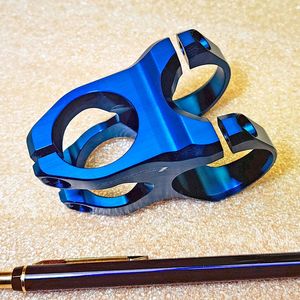

The Roeders RXP 601 DSH trunnion-type, 5-axis machining centre has been in operation at the Weilmünster facility since April 2022. Mr Sterzer stated that installation and training went smoothly and the subsequent telephone hotline support has been exemplary.

He has had no problems with the new control system and found that it offers many interesting options. For example, dripping of coolant from cutters, which can interfere with in-process measurement, may be prevented using specific commands.

Mr Legner summarised: “We have seen cycle time savings of up to 25 percent using the Roeders machining centre and surface quality is so good after milling that manual finishing is greatly reduced. The benefits are most noticeable at transitions and on freeform surfaces. Another important factor is the quality of the machine manufacturer's after-sales service. Quick response to problems is just as essential as the equipment's performance during production. At the end of the day, the best machine is of little use if you have to wait weeks for repairs. The next phase in the near future will be to automate the RXP 601 DSH with Roeders' own system so we can switch from the double-shift to 24-hour operation.”
