Walter's Revolutionary WT26 Insert System for Precision Machining

Precision for small parts New turning tools for Swiss type turning machines

2024-11-11 Source: Walter 2 min Reading Time

Related Vendors

Walter introduces the WT26 indexable inserts and compatible turning toolholder system, a game-changer for precision machining on Swiss-type sliding-head turning centers. Designed for bars under 20 mm, the WT26 system delivers high stability, process reliability, and vibration resistance through its dovetail clamp and extensive contact surface.

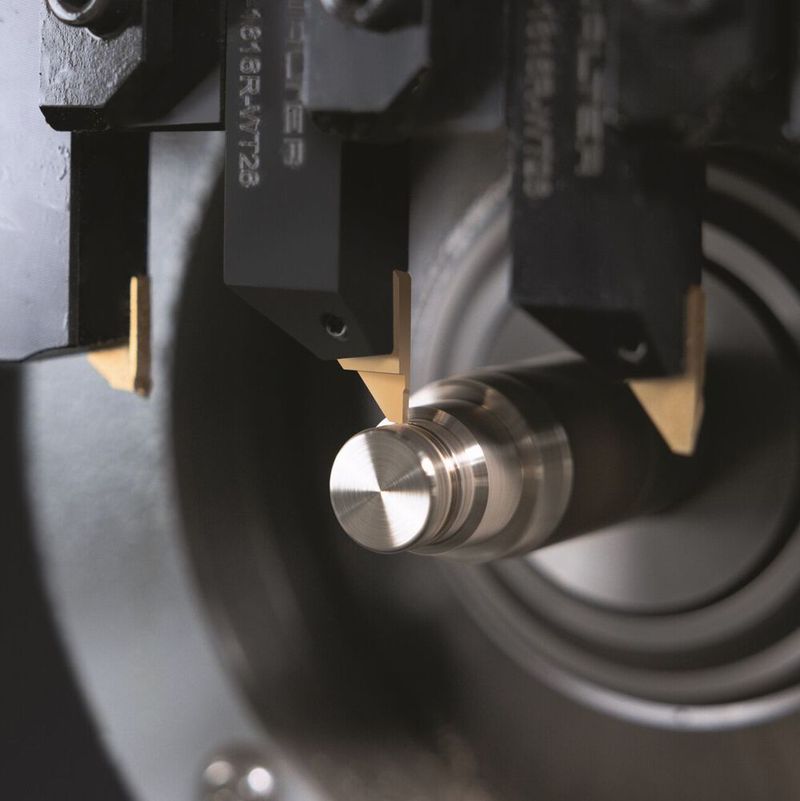

The tangentially mounted WT26 indexable inserts are precision-ground and boast sharp cutting edges specifically for turning small precision parts. (Source: Koch Visuals/ Walter) — The tangentially mounted WT26 indexable inserts are precision-ground and boast sharp cutting edges specifically for turning small precision parts.
(Source: Koch Visuals/ Walter)

With the new double-edged WT26 indexable inserts and the compatible turning toolholder system, Walter offers a new tangential indexable insert and turning toolholders solution that is perfect for producing small parts on Swiss-type sliding-head turning centres.

Bars with a diameter below 20 mm are typically machined to meet strict precision requirements — this is where the new WT26 system is perfect. The dovetail shape of the insert clamp is excellent at absorbing lateral forces. This ensures high levels of stability, process reliability and accuracy. The clamp system and the large contact surface in the insert seat maximise stability, which particularly counteracts any vibration of the bar material.

Another special feature is the possibility of operation on both sides. This is credit to a clamping screw that has a Torx on both the head side and the threaded side, meaning that it can always be operated from the side of the counter-spindle on right and left-hand tools. This makes it possible to index the inserts quickly without removing the toolholder, significantly reducing non-productive time for the operator.

The tangentially mounted WT26 indexable inserts are precision-ground and boast sharp cutting edges specifically for turning small precision parts. Furthermore, the periphery ground chip breaker geometries are also available in DG8 and VG8 designations. This makes it possible to achieve optimum machining results even at feed rates from as low as f:0.03 mm. Walter's WT26 indexable inserts come in seven different versions, covering all turning operations. This includes everything from basic recesses and external threads to reverse turning with specially developed chip breakers.

The new WSM23X cutting tool material is perfect for machining steel, stainless steel and lead-free brass. In addition, the uncoated WN23 grade is suitable for aluminium and non-ferrous metals. Moreover, the cutting inserts can be used in any WT26 toolholder, regardless of the system.
