Walter's New State-of-the-Art Tool Adaptor Upgrade: Precision and Reliability

System interface Walter’s latest tooling upgrade boosts versatility and process reliability

2024-09-24 Source: Walter GB 1 min Reading Time

Related Vendors

Walter GB Ltd.

HASCO Hasenclever GmbH + Co KG

Renishaw plc

DIPROFIL Diamantprodukter AB

Cutting tool manufacturer Walter enhances tool adaptability with its new master adaptor upgrade from HSK to Walter Capto. Featuring hidden balancing holes and integrated chip technology, this state-of-the-art interface improves precision, process reliability, and digital tool management.

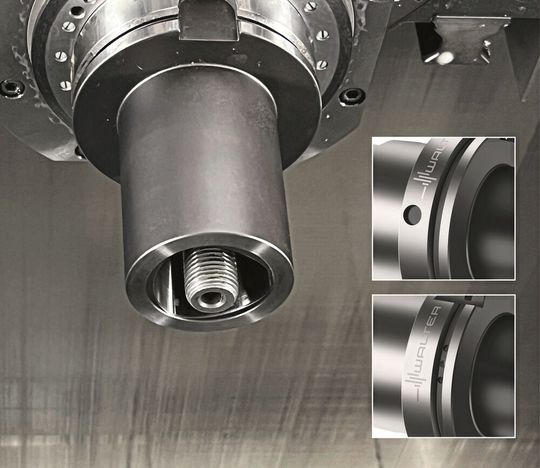

Walter’s upgraded master adaptor from HSK to Walter Capto integrates concealed balancing holes and an automated chip hole, enhancing precision and ease of use for digital tool integration and management.(Source: Walter) — Walter’s upgraded master adaptor from HSK to Walter Capto integrates concealed balancing holes and an automated chip hole, enhancing precision and ease of use for digital tool integration and management.
(Source: Walter)

By upgrading its master adaptor from HSK to Walter Capto, premium tool manufacturer Walter is launching a state-of-the-art system interface. The interface incorporates concealed balancing holes, which were previously on the outside of the tool. This balanced construction created at the Walter factory also incorporates a chip hole integrated at the factory.

The user no longer has to drill this hole themselves. It provides users with the possibility of digital tool integration, for example for automated tool management. This is because tool data such as dimensions can be saved by inserting a data chip into the tool and can be read out when required, such as programming or storage. The Tübingen-based company offers the modular adaptor (HA06-C and HA10-C) from HSK-A to Walter Capto with HSK-A 63 or HSK-A 100 interface in Capto sizes C3–C8.

End users benefit from the high level of process reliability and precision as the adaptor is very rigid and secondly, from the precise repeat accuracy down to 2 µm during tool changes. Furthermore, its incredible versatility makes it suitable for all types of adaptors such as Weldon, ER collets, hydraulic expansion chucks or milling adaptors with arbors for milling and holemaking. This makes the system compatible with all kinds of machines from machining centres through to multi-tasking machines.

Users of data storage devices can open up their entire range of tools with the master adaptor. This is because it be used with all machines and machining operations and it is also suitable for universal use with all projection lengths from extensions to reducers.
