The Sodick UX450L high-end machining centre is attracting attention from manufacturers. Featuring linear drive technology, a 40,000 rpm spindle, and a 10-year guarantee on positional accuracy, it provides precise machining and high-quality surface finishes. Designed for complex components and demanding applications, the UX450L reduces the need for additional processes such as grinding or polishing.

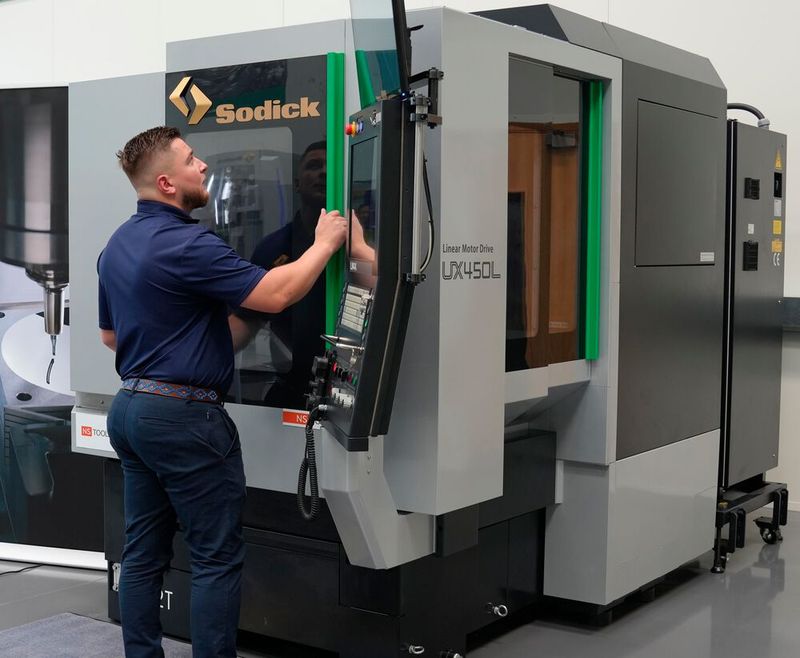

The new Sodick UX450L machining cerntre with Linear Drive Technology.(Source: Sodi-Tech) — The new Sodick UX450L machining cerntre with Linear Drive Technology.
(Source: Sodi-Tech)

Introduced to the UK in the spring, the Sodick UX450L high-end machining centre from Sodi-Tech UK has gained significant attention from manufacturers. This high-speed machining centre, featuring linear drives, comes with a 10-year guarantee on positional accuracy, which has already attracted interest from UK machine shops.

Sodick, a leader in linear drive technology, introduced the world's first independently developed linear drives for mass-produced machine tools. More than 25 years later, the new UX450L represents the next generation of Sodick technology, designed to push the limits of machining capabilities. The machine’s gantry structure, Z-axis cast cooling system, and low centre of gravity work together to provide stability and rigidity. This cooling system helps minimise thermal displacement, ensuring high levels of precision and stability for consistent machining results.

Gallery

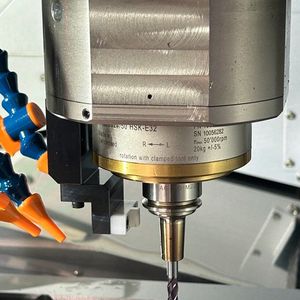

The high speed milling spindle on the Sodick UX450L(Source: Sodi-Tech)

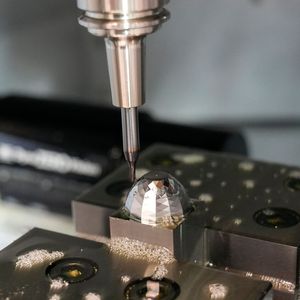

The Sodick UX450L attaining 'mirror-like' surface finishes that demonstrate its stability, precision and performance(Source: Sodi-Tech)

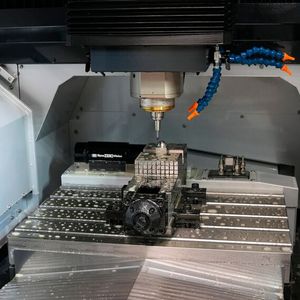

The spacious work envelope of the high-performance Sodick UX450L machining centre(Source: Sodi-Tech)

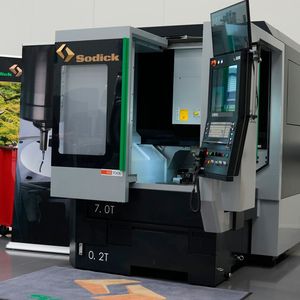

The new Sodick UX450L is available now from Sodi-Tech UK(Source: Sodi-Tech)

Gallery with 5 images

Commenting upon the jaw-dropping performance of the new UX450L, Conor Plaskitt, Technical Sales Manager at Sodi-Tech UK says: “We are very well known for EDM but not so much for high-speed machining. However, the two work together very well. For a typical copper or graphite electrode manufacturer, the Sodick UX450L is the perfect machine. If you look at processes where spark erosion isn’t always necessary, the UX450L is the perfect machine. It's ideal for hard milling where manufacturers want ‘mirror-like’ surface finishes and very tight tolerances. The machine has a high-speed 40,000rpm spindle and as Sodick is a world leader with its linear motor technology, the ability of the machine kinematics and axis movements to start and stop very quickly with pinpoint precision is exceptional.”

From a specification perspective, the Sodick UX450L has X, Y and Z-axis travel of 450 by 350 by 200 mm with a spacious 600 by 400 mm work table. This machine has a 16-position automatic tool change facility and linear glass scale feedback on the X, Y and Z-axis linear motors that are all temperature controlled.

Looking at parts that can be manufactured on this machine to eliminate time-consuming processes on alternate machine tools, Conor continues: “The machine is perfect for complex components that need very high surface finishes, such as mould tooling. The UX450L can achieve such high-quality surface finishes that it eliminates the requirement for time-consuming grinding or secondary polishing. Likewise, the machine can replace jig grinding applications - another skill that is gradually being lost.”

Looking at the control panel, Conor says: “With any Sodick product, we have a Sodick PLC on the front end, so it is a Sodick control in terms of programming. It has full conversational programming and we have also just enhanced our tool measurement methods.”

The LN4X NC unit has been designed for intuitive interaction through its 19-inch touch panel. This is enhanced by the simple program creation function software that prompts the operator to input simple data parameters on the screen for immediate machine uptime. Other features include the sleep mode function that minimises power consumption by recognising idle times such as program stops, coolant stops, axis movement stops and more. The LN4X NC unit is supported by the Septune machining support system that delivers simple and smooth operation with just four steps to the machining operations. To streamline productivity, Sodick has introduced its Motion-Expert-S simulation software and the EF-Tune machining feed rate software.

The machine is equipped with a Blum tool measurement system that works in tandem with a Renishaw touch sensor, ensuring precision and repeatability. As Conor adds: “Traditionally, we used to use a laser but with a spot diameter on the laser, manufacturers are limited to the size diameter of cutting tool that you can go down to. We use an optical system which means we can go down to a 0.2 mm diameter cutting tool with absolutely no problem and still measure to a couple of microns. The camera we have on the machine will not only check the form of the cutter but also the run-out. The shrink fit toolholders are good for 2µm, but we can counteract that by using the camera system.”

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Discussing how the UX450L is unique in the field of machining centres, Conor adds: “This is not your run-of-the-mill machining centre. This machine sits at the very top tier of the machining centre pyramid. This makes it perfect for high-end medical and mould & die applications as well as other niche areas that demand such levels of precision.”
