Simple and quick clamping system for die-making

Related Vendors

Meusburger Georg GmbH & Co. KG

Ramada Acos

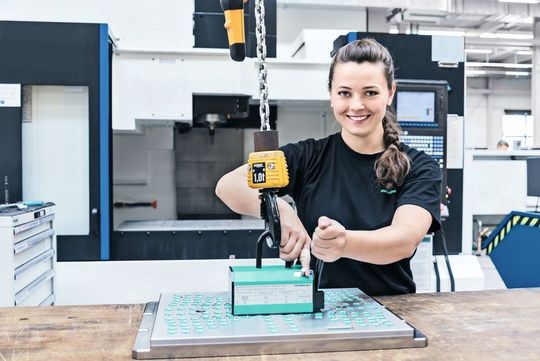

How does the H 3000 work?

The functioning principle is quickly explained: The S-plates are clamped using the guide holes and thereby positioned and aligned in the middle of the H 3000. It is no longer necessary to constantly align the plates, so the machinist's work is easier and more efficient. When clamping die plates with expanding rings, the interfering contour is reduced to the contours of the workpiece. This simplifies programming and minimises the risk of a collision. The H 3000 is available in two sizes. It is possible to machine pillar retainers and bush retainers as well as NP-bars on both sides with the same-sized die set without having to change the position of the accessories.

With the H 3000 Wizard in the web shop and CD catalogue, an individual H 3000 clamping system can be easily configured. Users can choose from two different plate sizes, which can then be equipped with the respective clamping devices. The fully automatic calculation of the clamping accessories ensures that the clamping system meets the application requirements precisely.

The Meusburger Group is a leading international manufacturer of standard parts, hot runner and control systems and selected workshop equipment. According to the company, more than 18,500 customers all over the world make use of the advantages of standardisation and benefit from the company's experience in working with steel. High-precision standard parts by Meusburger are built to optimise the entire process chain. By using standard parts, customers benefit from cost-saving potential in die, mould, jigs and fixtures construction and the subsequent production of parts. Furthermore, all plates and bars by the company are heat-treated for stress relief and therefore provide a reliable basis for high-grade moulds, dies, jigs and fixtures.
