Paul Horn to Launch New Precision Tools at Mach 2024 in the UK and Ireland

Mach 2024 Paul Horn to unveil cutting-edge tooling solutions at Mach 2024

2024-02-12 Source: Paul Horn 5 min Reading Time

Related Vendors

Paul Horn, a leading manufacturer of precision tools, is set to unveil five new products in the UK and Irish markets at Mach 2024. These innovations, designed to enhance superfinishing, milling, thread whirling, boring, and turning operations, are part of Horn's commitment to advancing manufacturing technologies.

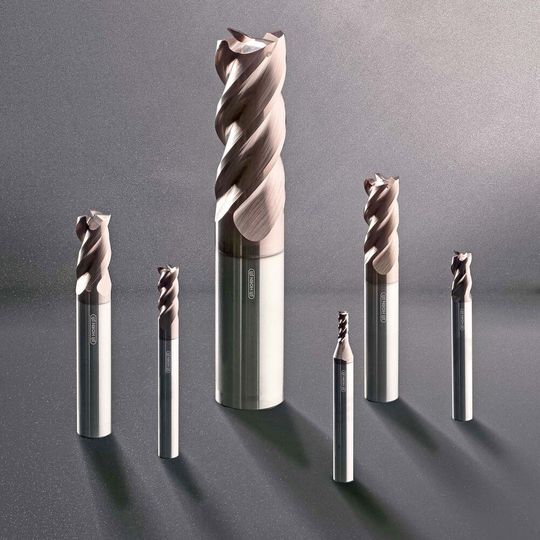

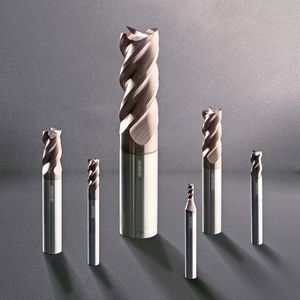

Due to the precise combination of substrate, macro and micro geometry, and IG3 coating, Horn's new solid carbide milling system for stainless steel exhibits high performance and long tool life.(Source: Horn) — Due to the precise combination of substrate, macro and micro geometry, and IG3 coating, Horn's new solid carbide milling system for stainless steel exhibits high performance and long tool life.
(Source: Horn)

Paul Horn, the solid carbide tooling, carbide insert and tool holder manufacturer headquartered in Tübingen, Germany, has supplied more than 200,000 special tooling solutions over the years and currently offers 25,000 standard products, including five due to be introduced to the UK and Irish markets at Mach 2024. Wholly-owned subsidiary Horn Cutting Tools will be on stand 6-210 to explain the reasons behind the launches and will also exhibit a broad cross section of the manufacturer's extensive tooling range.

Superfinishing of bores

An addition to the Horn Supermini boring, grooving and chamfering system will be announced, a variant with a precision-ground rake face designed for producing ultra-fine bores. The ground cutting edge is free from notches when viewed at a magnification of x200 and the tool can be used to machine components having an inside diameter from just 0.3 mm. Sharp insert geometry ensures process reliability, even with very small infeed and cutting feed rates. The specially developed coating is suitable for stainless steels, non-ferrous metals and other metals.

Gallery

For machining cast iron brake discs economically, Horn has introduced a new tool range that includes solid CBN (cubic boron nitride) ISO inserts, as well as CBN-tipped full-radius and shaped inserts, plus stable tool carriers.(Source: Horn)

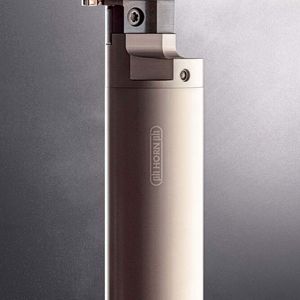

Horn's new boring bar with adjustable damping carrying one of the manufacturer's grooving inserts.(Source: Horn)

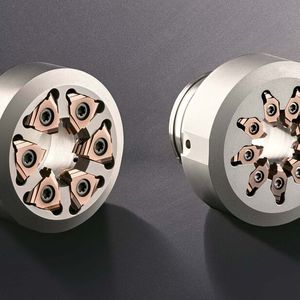

The new SG3P carbide grade from Horn enables shorter thread whirling cycle times thanks to higher cutting values, including when processing materials that are difficult to machine. The grade is available for all Horn thread whirling systems.(Source: Horn)

Gallery with 5 images

The Supermini Type 105 system insert requires only one tool holder for well over 1,000 insert variants, which applies equally to left-hand and right-hand versions. The carbide inserts are available coated or uncoated in various grades for a variety of applications, including hard machining up to 66 HRC. The patented, droplet-shape cross section has a vibration-damping effect and delivers excellent repeatability during insert exchange. Internal coolant supply to the insert increases tool life, enhances cutting performance and improves chip removal. Horn offers the tools with face clamping elements that allow the insert to be changed easily without having to remove the holder from the machine.

High-performance milling of stainless steel

Horn has developed a new, solid carbide milling cutter range for machining stainless steels, widely used in the food, chemical and pharmaceutical sectors, as well as in the watchmaking and other precision engineering industries. Due to their geometry and efficient chip breaking, the mills are suitable for machining numerous other materials as well. The combination of substrate, macro and micro geometry, and IG3 coating exhibits high cutting performance and long tool life. The coating in particular offers high temperature resistance for machining steels alloyed with chromium, nickel and molybdenum.

The tools are offered in two types from stock. The DSHPR variant is suitable as both a finishing and a roughing tool and the geometry is adapted for trochoidal machining and plunging. Type DSR, with its very sharp cutting edge geometry and short design, is suitable for very small parts and unstable workholding conditions, such as are frequently encountered in the medical and watchmaking industries. In the DSHPR line, all tools are available with four teeth and in diameters from 2 mm to 20 mm, while the DSR has three teeth and is offered in diameters from 1 mm to 10 mm.

The Manufacturing Technologies Association (MTA) will use its flagship event, Mach 2024, to launch a new initiative. (Source: MTA)

New high-performance grade for thread whirling

A new, high-performance, carbide grade from Horn, the SG3P, presents enhanced possibilities in terms of performance and tool life when whirling medical screws. It enables shorter cycle times for thread production thanks to higher cutting values, including when processing materials that traditionally are difficult to machine. In addition, the combination of an ultra-fine-grain carbide powder and a high-temperature-resistant coating raises process reliability and improves component quality. In-house coating of the inserts enables fast delivery times and the carbide grade is available for all standard Horn thread whirling systems.

Boring bar with adjustable damping

A long overhang can cause a turning tool to oscillate when boring internal geometries. In addition to causing chatter marks on the surface of the machined component, the vibrations can lead to a significant reduction in tool life. For unfavourable length-to-diameter ratios, even damped boring bars may vibrate under certain conditions. To help mitigate these difficulties, Horn has introduced a boring bar with adjustable damping so it can be set to match the amplitude of the oscillation generated by the machining process. Precise adjustment enables vibration-free turning, resulting in better surface quality of the machined component and a significant increase in insert life.

The damping element, a carbide rod supported in O-rings, is adjusted from the outside by turning a screw to fine-tune the pre-tension of the rings. It allows the boring bar to be set accurately to minimise the vibration that is predicted to occur during a machining cycle. As standard, Horn offers the boring bars from stock in length-to-diameter ratios of 5:1 and 8:1. Higher ratios are available as special tools. In the case of grooving, Horn offers the S224 double-edged system. The manufacturer's BK 224 cassette ensures a stable interface between the boring bar and insert. To increase process reliability further, the tools have an internal coolant supply.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Very hard grade for turning brake discs

Horn is also launching a new tool range for manufacturing brake discs economically. It includes solid CBN (cubic boron nitride) ISO inserts, mainly used for cast iron machining, and CBN-tipped full-radius and shaped inserts. The grade has no metallic bonding phase and therefore has the highest hot hardness of all cutting materials. Horn offers the solid CBN ISO S turning insert with eight cutting edges for roughing and finishing. Cutting speeds of well over 1,000 m/min, depths of cut of several millimetres and feed rates up to 0.7 mm/rev are typical values. Stable tool carriers are included in the offering. Depending on the operation and metal removal rate, in excess of 1,000 cast iron brake discs can be machined per insert corner.

Additionally, Horn has introduced two different tool solutions for machining the heat dissipation grooves in the discs. The CBN-tipped S117 profile grooving insert is ideal in terms of cutting speed and longevity for large batch production. During the process, each groove is produced in just under two seconds in a single operation. For greater flexibility, Horn's S229 full-radius, CBN-tipped inserts offer the option of copy turning the grooves in around four seconds. Regrinding and re-tipping are possible with both types. The frictional connection between the carbide thrust pad and the insert is via a defined annular surface, preventing compressive stresses on the insert. Engagement of the thrust pad in the bore of the insert pulls it into the seat of the tool holder, preventing clamping errors and increasing precision.
