Meusburger Easyfill EH 4010: Cost-Effective Single Nozzle Solution

New single nozzle Cost-effective, modular nozzle solution for efficient moulding

2024-02-22 Source: Meusburger 1 min Reading Time

Related Vendors


Meusburger Georg GmbH & Co. KG

HASCO Hasenclever GmbH + Co KG

CUMSA

Discover the new single nozzle Easyfill EH 4010 by Meusburger — a cost-effective, versatile solution for your molding needs. Developed as an economical alternative to the Smartfill EH 4000, it's available in two flow channel diameters and four lengths.

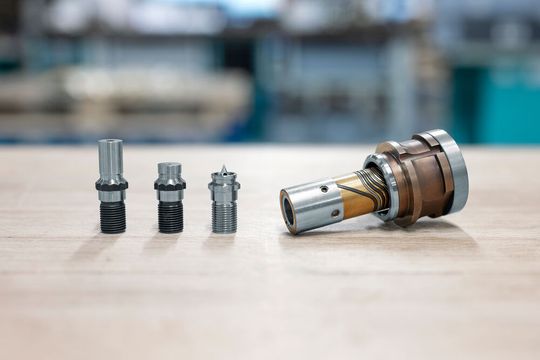

Meusburger has expanded its product range to include the single nozzle easyFILL EH 4010 for selected applications.(Source: Meusburger) — Meusburger has expanded its product range to include the single nozzle easyFILL EH 4010 for selected applications.
(Source: Meusburger)

Meusburger has expanded its product range to include the single nozzle Easyfill EH 4010 for selected applications. It has been developed as a cost-effective alternative to the single nozzle Smartfill EH 4000 and is available with two flow channel diameters and in four lengths respectively.

The nozzle features a modular design and uses many components from the existing Smartfill nozzle series. The combination with new, cost-effective components has led to considerable cost savings. The one-piece, coated nozzle tip allows problem-free processing of most plastics, including technical ones. There are only restrictions for filled plastics. The single nozzle Easyfill is heated with just one control zone. The heat output distribution in the nozzle heater was adapted accordingly so that a second heater in the area of the nozzle housing and the sprue bush is not necessary. Different nozzle heads and contact radii in the sprue bush allow an individual selection of the nozzle to suit the injection situation on the item or in the mould and the connection to the machine nozzle.

The single nozzle Easyfill can be selected and ordered around the clock in the Meusburger shop. Once the nozzle has been selected, the corresponding 3D CAD data including the installation space can be downloaded immediately. A large number of possible file formats are available for this purpose. The nozzle is then delivered within just two working days. The modular design of the nozzle allows individual nozzle components to be replaced at any time, so that repairs are efficient and economical.
