Latest Generation of Guill's Series 800 Extrusion Tooling Explained

Extrusion tooling Extrusion tooling: Enhanced efficiency and precision for multi-layer tubing applications

2024-09-24 Source: Guill Tool & Engineering 1 min Reading Time

Related Vendors

Guill introduces the latest generation of its Series 800, the 2-to-6 layer extrusion tooling designed to produce high quality, material-efficient 1/8” to 6” OD tubing for automotive, medical, appliance and industrial applications.

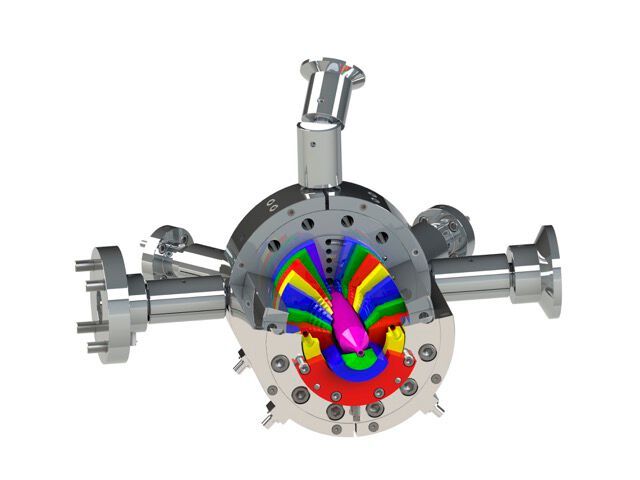

Guill has introduced the latest generation of its Series 800, a 2-to-6 layer extrusion tooling designed to produce high-quality, material-efficient tubing with diameters ranging from 1/8” to 6”(Source: Guill) — Guill has introduced the latest generation of its Series 800, a 2-to-6 layer extrusion tooling designed to produce high-quality, material-efficient tubing with diameters ranging from 1/8” to 6”
(Source: Guill)

The redesigned Series 800 extrusion tooling from Guill produces flawlessly smooth extrusion and layer definition of Fluropolymer and other materials for all multi-layer, multi-lumen medical tubing, as well as fuel line constructions, multi-layer PEX pipe and drip irrigation applications, among others. The design further allows thin layer combinations of polymers and adhesives to 0.02 mm or less.

The company offers its line of crossheads and inline tubing dies in fixed and adjustable center, for single or co-extrusion applications. The tooling is designed to process all compounds and features the company’s patented, precision Feather Touch Concentricity adjustment, the Seal Right System, which combines with the Feather Touch system to eliminate polymer leaking. Guill also offers its unique spiral flow distribution system. All Guill tooling is produced with rigorous computer simulation of the flow channels using Computational Fluid Dynamics (CFD) programs, resulting in optimum uniform flow with no weld lines.
