Horn Introduces Dual Coolant Tool Holder for 224 Indexable Insert Grooving

Machining Versatile tool holder for Horn grooving system

2024-04-15 Source: Horn Cutting Tools 1 min Reading Time

Related Vendors

Horn has introduced a new tool holder for the 224 indexable insert grooving range, featuring dual coolant connections to improve machining precision and extend tool life. This compact holder is available in multiple shank sizes and allows for flexible coolant delivery.

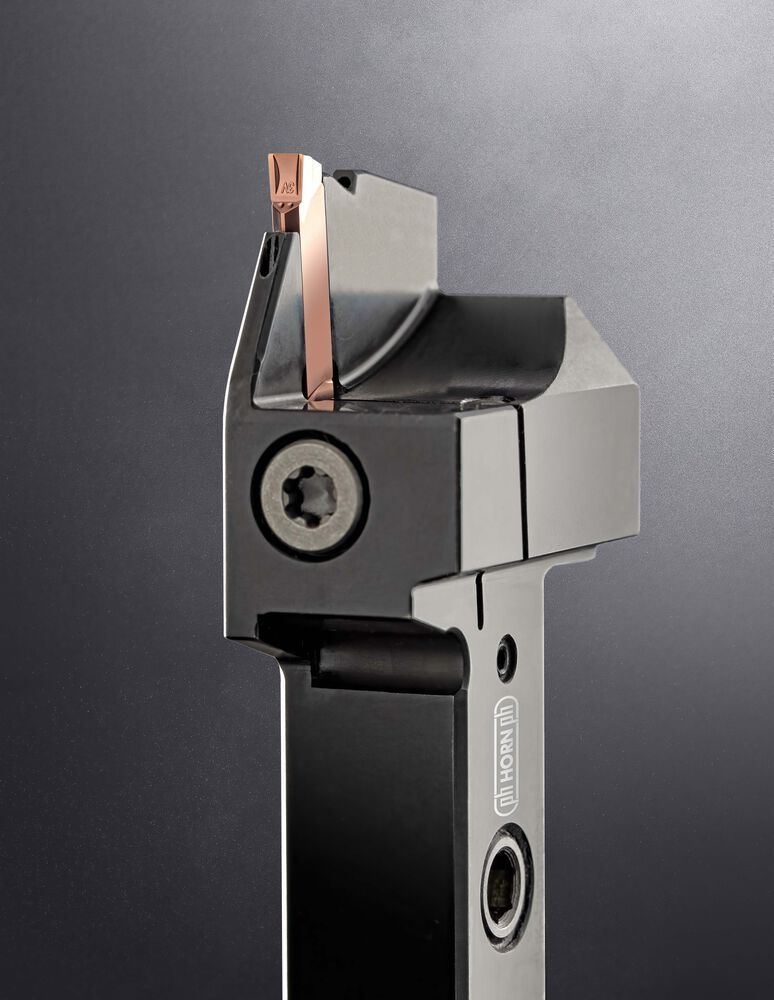

Horn's new tool holder for its 224 grooving system combines two coolant connections. It joins the manufacturer's more than 25,000 different standard products.(Source: Horn) — Horn's new tool holder for its 224 grooving system combines two coolant connections. It joins the manufacturer's more than 25,000 different standard products.
(Source: Horn)

Tool manufacturer Horn has combined the attributes of various tool holders into one to provide a new version with two connections to suit the user's coolant delivery equipment. The holder has been designed for the popular 224 indexable insert grooving tool range.

One connection suits a VDI system that directs coolant to the cutting edge via the insert's clamping finger, while the other is a threaded G 1/8 connector on the side leading to a hole on the other side of the insert to deliver coolant to the flank face. The two circuits cannot be used simultaneously.

The holder is of compact design and is offered with a 16 mm, 20 mm or 25 mm square shank. All sizes are available from stock for widths of cut of 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm and 6.0 mm. The shanks are made of high-strength steel, which ensures accurate location of the insert seat, leading to rigidity and hence long service life.
