Horn to Unveil Cutting Tool Line-Up at Mach 2026

Mach 2026 From micro boring to deep grooving: Horn showcases its cutting tool range

2026-01-31 Source: Horn Cutting Tools 5 min Reading Time

Related Vendors

Horn is set to bring a strong cutting tool line-up to Mach 2026, with a showcase of more than 20 new and recently launched products on its stand. An overview...

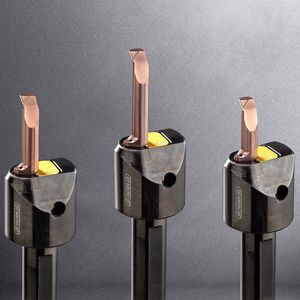

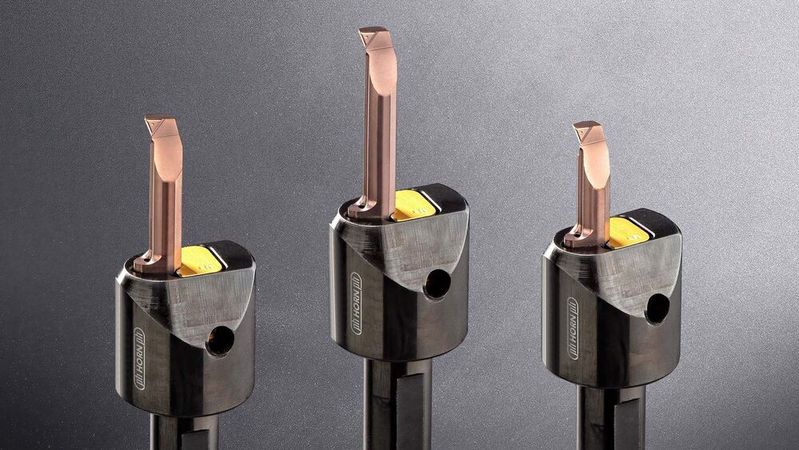

Horn Supermini type 105 universal boring system with sintered GM chip-breaker geometry.(Source: Horn Cutting Tools) — Horn Supermini type 105 universal boring system with sintered GM chip-breaker geometry.
(Source: Horn Cutting Tools)

There will be a display of no less than 20 new or recently introduced cutting tool products on Horn’s 232 square metre stand at Mach 2026 (Hall 6-210). The emphasis will be on the manufacturer’s range of carbide inserts with chip-breaking geometry pressed accurately, repeatably, at high speed and therefore economically into each green blank before it is sintered.

It saves the expense of having to painstakingly laser-cut or grind the feature into the insert after it has been hardened, which until now has been the norm with miniature inserts due to the difficulty in pressing a reliable, effective chip breaker into such a tiny blank without it warping or losing precision when heated in a furnace. Now that these issues have been resolved, it is notable that the prices of the new Supermini type 105 GM (geometry moulded) boring system inserts, for example, are similar to those of standard inserts without geometry.

Gallery

An artist’s view of the Horn stand at Mach 2026.(Source: Horn Cutting Tools)

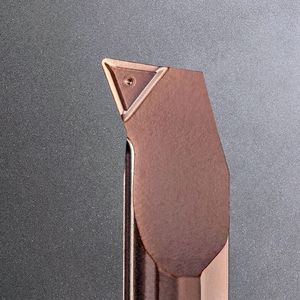

Close-up of the Supermini type 105 insert, showing the chip-breaker topology that is pressed into the green blank before sintering.(Source: Horn Cutting Tools)

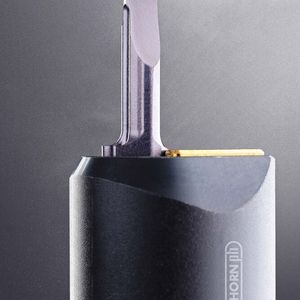

A Horn Supermini type 105 threading tool with sintered GM chip breaker insert.(Source: Horn Cutting Tools)

Gallery with 7 images

As with previous machined chip breakers, the new sintered types avoid the drawback of long, stringy swarf coiling around the tool or workpiece and potentially causing damage to both. The inserts are intended for boring and internally threading components having small holes down to 4 mm in diameter.

Horn developed teardrop-shaped carbide blanks for the tool, enabling large, precise contact surfaces in the tool holder and resulting in greater rigidity of the overall system. Furthermore, the teardrop profile prevents the insert from twisting, which leads to consistent, precise positioning of the centre height of the tool. When using long tool overhangs, it reduces deflection and minimises vibration during turning.

The inserts are offered as standard in carbide grades TH35 and IG35. They are compatible with numerous 105 tool holders, including round shank, square shank, interface and adjustable versions. All sizes allow internal coolant supply directly to the cutting zone. Overall, the tool portfolio includes around 2,500 different standard variants of the Supermini.

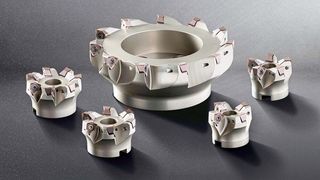

The new DA65 milling system from Horn. (Source: Horn)

Threading tools

At the EMO 2025 exhibition in Hannover, Horn expanded its Supermini 105 system further with six economically-priced GM insert variants for high-end chip control when turning metric ISO internal threads in partial profile. MACH 2026 will provide a first chance to see them in the UK.

The chip breaker geometry generates short lengths of swarf, even with difficult-to-machine and malleable materials, reducing the risk of chip jamming and preventing swarf from wrapping around the tool. The inserts are suitable for producing metric internal threads, in a hole diameter of 5 mm and above, with pitch sizes from 0.5 mm to 1.5 mm. Standard Supermini system tool holders may be used.

Tools for deep axial grooving

Featured also on the stand will be Horn’s robust Mini 114 product family, with larger, face-mounted inserts designed for face grooving to depths of up to 10 mm. The user does not need to use a special tool holder, as the insert is compatible with the existing axial holder. As standard, Horn offers the EG55 carbide grooving tools in three different types from stock with cutting widths of 2 mm, 2.5 mm or 3 mm. Target materials are those that normally generate long, stringy swarf when turned, such as stainless steels, as well as lead-free materials which are becoming a regulatory requirement.

From machine tools and automation to additive manufacturing and digital solutions, MACH 2026 presents the full spectrum of manufacturing technologies shaping the UK’s industrial future. (Source: MTA)

The face-screwed inserts of the Mini system are one of Horn's core products. Paired with low-vibration carbide tool holders, the 114 inserts with ground chip-breakers produce good surface finish even with long overhangs and ensure excellent process reliability. The precision tools have proven particularly effective for boring and internal grooving, as well as for face grooving.

On show also will be the Mini 111 insert with sintered I-geometry chip-breaking, whose primary application is finishing where the depth of cut is shallow. In these scenarios, traditional inserts often fail to break the chip, but the I-geometry forces it to snap into small pieces. To support fine finishing, Horn offers the inserts with corner radii from 0.05 mm to 0.2 mm from stock.

Boring is possible in holes from 11 mm diameter and when paired with Horn's solid carbide tool holders, the cutters can achieve high-quality surface finishes even with long overhangs. If the even smaller Mini 108 tool system is used, which also has I-geometry, bores from 7.8 mm diameter may be machined.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

New six-edged radial grooving inserts

With the new 66T grooving system, Horn recently expanded its cutting tool portfolio in the area of six-edged indexable inserts, which offer a competitive price per cutting edge. Maximum grooving depth is 9.5 mm, which is about 4 mm more than is possible with the sister system, 64T. Cutting width is either 2.5 mm or 3 mm and the corner radius is 0.2 mm.

Depending on the application, Horn offers 66T grooving inserts with a choice of two chip breaker geometries, 1A or DL, to ensure reliable chip management during machining, plus a further version without geometry for maximum edge strength. The IG65 carbide grade is used for machining stainless steels and difficult-to-cut materials. For general steels, Horn recommends the EG55 carbide grade.

Depending on the application, Horn offers inserts for the 66T grooving system with two chip breaker geometries, plus a version without geometry for maximum cutting edge strength. (Source: Horn)

The 1A geometry is suitable for groove turning operations only, while the DL geometry is suitable for longitudinal turning as well as grooving. For the former operation, the inserts are available with a corner radius of 0.4 mm. The variants with chip breaking geometry ensure excellent surface quality on the groove flanks and the straight main cutting edge produces a cleanly finished base.

Designed as neutral grooving inserts, they can be clamped in square shanks, with internal coolant delivery to either the left- or right-hand side. Shank cross section is 20 x 20 mm or 25 x 25 mm. A clamping screw fixes the grooving insert precisely and securely in the central insert seat. The inserts are also compatible with Horn’s modular type 220 clamping cassette holder system.

New tool for parting off

Launched also at EMO 2025 and on show at Mach 2026 for the first time in the UK will be the S234 system that Horn has developed especially for large parting depths. The double-edged system enables a maximum depth of cut of 33 mm for reliable, economical parting off. The combination of large grooving depths, rigid clamping, high-performance sintered EN chip breaking geometry and internal cooling makes the system attractive in terms of price/performance.

The inserts are available in cutting widths of 2 mm or 3 mm. The corner radii are 0.2 mm and 0.3 mm respectively. Depending on the material to be machined, the inserts are available in AS65 and IG65 grades. Square shank holders in sizes 20 mm x 20 mm and 25 mm x 25 mm ensure stable clamping. Horn also offers reinforced grooving blades and tool holders for the modular parting and grooving system. All types are equipped with internal coolant supply.
