Hasco's New PTFE Corrugated Hose: High Flexibility & Extreme Temperature Resistance

Temperature control Flexible and reliable — new range of PTFE temperature control hoses

2024-08-12 Source: Hasco 1 min Reading Time

Related Vendors


Hasco has expanded its product portfolio with the introduction of the new PTFE corrugated hose Z8565/…, designed for temperature control circuits. Featuring a PTFE core with stainless steel braiding and color-coded polyester yarn, these hoses offer high flexibility, twist resistance, and durability in extreme temperatures.

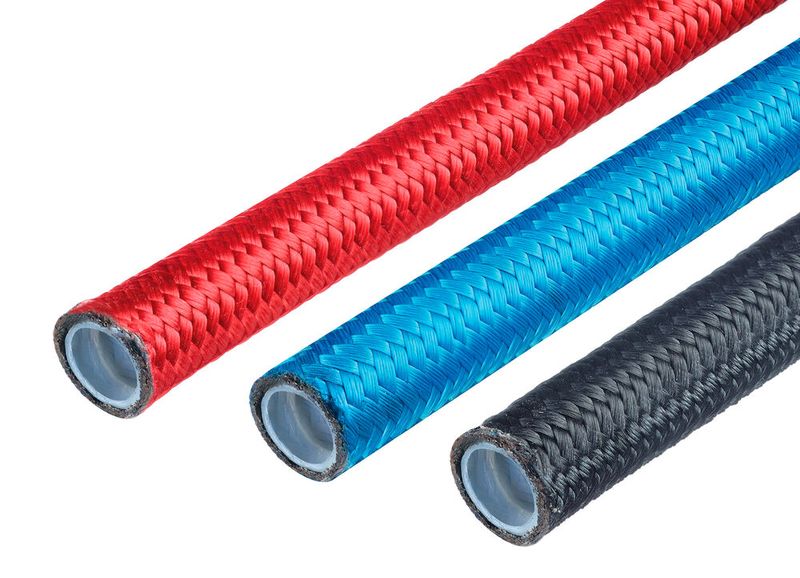

The core of the new corrugated hoses is made of PTFE, and they are covered with a stainless steel braiding. (Source: Hasco) — The core of the new corrugated hoses is made of PTFE, and they are covered with a stainless steel braiding.
(Source: Hasco)

Safety and reliability are essential when it comes to hoses for temperature control circuits. With its new PTFE corrugated hose Z8565/…, Hasco has extended its product portfolio with an innovative and varied range of temperature control hoses.

The core of the new corrugated hoses is made of PTFE, and they are covered with a stainless steel braiding. For better visibility, the hoses are additionally provided with a polyester yarn, which are available in the colours blue, red and black. The corrugated structure of the PTFE core ensures absolute twist resistance without any bending, and it also provides high flexibility. This enables hose routing in very small spaces. The temperature control hoses are resistant to temperatures in the range from -70°C to +260°C for the media of water, air and oil, and, depending on the size, can withstand a maximum operating pressure of up to 138 bar.

The innovative hose range complies with the highest requirements with regards to safety at work and process safety and can also be used in sensitive production environments such as medical technology and the food industry. The temperature control hoses Z8565/… are supplied each in three different lengths and in the system diameters of 9 and 13 mm. Through the different colouring, inflow and outflow lines and temperature control, bridges can be unambiguously marked to make them clearly recognisable.
