With the new MSC 5 Duo, Emag presents a compact, two-spindle CNC turning center tailored for automated, cost-efficient batch production. Debuting at EMO 2025, the machine combines proven technologies, integrated automation, and precise machining — all at a reduced capital investment.

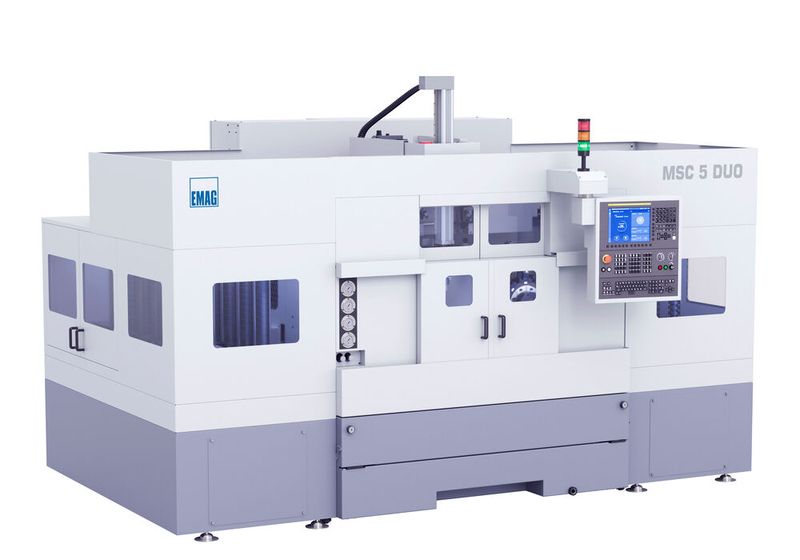

The MSC 5 Duo from Emag is characterized by its compact design and an integrated stacker system that enables autonomous and unmanned production.(Source: Emag) — The MSC 5 Duo from Emag is characterized by its compact design and an integrated stacker system that enables autonomous and unmanned production.
(Source: Emag)

In today’s world, manufacturing companies are facing major challenges: increasing cost pressure, a shortage of skilled workers and rising energy costs. This combination requires machine tools that generate more output with less manpower and are energy-efficient at the same time. The MSC 5 Duo from Emag was developed in response to these requirements and will be officially presented for the first time at EMO 2025 in Hanover.

Machine concept with a focus on productivity and cost-effectiveness

The MSC 5 Duo is a two-spindle front-loaded CNC turning center designed for automated batch production. As components of the Emag Classic series, it is characterized by an optimal ratio of functionality and capital investments. The machine focuses on high-productivity soft turning and combines proven Emag technologies with cost-optimized basic equipment.

Gallery

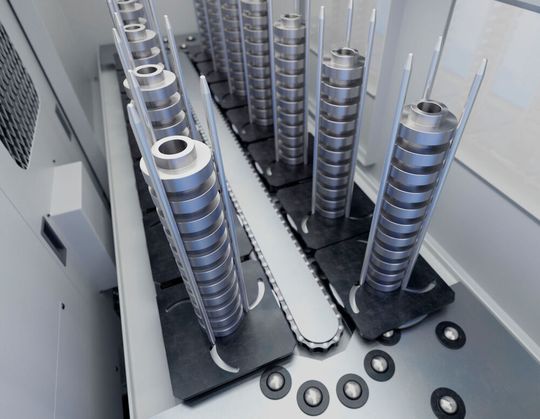

The stacking storage system for raw and finished parts integrated into the MSC 5 Duo enables hours of autonomous production without operator intervention.(Source: Emag)

The work area of the MSC 5 Duo is equipped with two A2-5 main spindles that reach a maximum speed of 4,500 rpm. Two BMT turrets each hold up to eight tools. The split-bed design prevents vibrations between the spindles.(Source: Emag)

Servomotor-driven 3-axis gantry loading system when loading the spindle(Source: Emag)

Peter Gröner, Product Manager of the Turning Business Unit at Emag, explains this approach: “The Classic series stands for optimized basic machines at attractive capital investments. While our modular and customer-specific machines offer a wider range of options and customization possibilities, with the Classic machines we concentrate on what is absolutely necessary.”

According to the company, the MSC 5 Duo costs significantly less per spindle than comparable models from higher product lines, but offers the same productivity for standard soft turning applications.

Split-bed design as the basis for precision

The split-bed design forms the foundation for precision machining results. This design of the machine base mechanically decouples the two work areas from each other and thus prevents the transmission of vibrations during simultaneous machining. This ensures constant dimensional accuracy on both spindles, even during demanding machining processes.

The main spindles of the MSC 5 Duo have been designed for a wide range of applications. With a maximum motor speeds of 4,500 rpm and a standard spindle power of 5.5 kW in continuous operation or 7.5 kW for up to 30 minutes, there is sufficient reserve power available for demanding machining tasks. A more powerful version with 7.5 kW in continuous operation and 11 kW for 30 minutes is available as an option.

The constant torque in the speed range from 1,125 to 4,500 rpm is particularly important for consistent machining results. It ensures constant cutting performance for different materials and machining requirements. The A2-5 spindle nose can accommodate various chucks up to 210 mm in diameter.

The thermally optimized spindle bearing with precision bearings ensures maximum concentricity, while an intelligent cooling concept with active temperature monitoring guarantees constant machining conditions even in continuous operation.

Dynamic turret with BMT interface

The servo-controlled turrets form the heart of the MSC 5 Duo. Eight tool positions are available as standard, with an optional extension to twelve positions. Compared to conventional VDI- holders, the BMT tool interface offers significantly higher rigidity, which has a positive effect on machining quality and tool life.

This interface enables the mounting of boring bars up to 40 mm in diameter for internal machining as well as tools with a 25 x 25 mm shank for external machining. The servo-controlled indexing in combination with hydraulic clamping ensures short tool change times and high positioning accuracy.

Efficient gantry loading system for minimal non-productive time

A decisive productivity factor in batch production is the reduction of non-productive times. The 3-axis gantry loading system of the MSC 5 Duo, which is fully integrated into the machine control system, automatically loads and unloads the workpieces. Parts handling is fast and precise thanks to the use of servo motors in all axes. The workpiece turner integrated as standard enables the complete machining of workpieces from both sides within one machine, which considerably simplifies the material flow and significantly reduces lead times in production.

Another important aspect is the compact stacking storage system (stacker system), which is integrated directly into the machine. This system for raw and finished parts requires no additional space and can be flexibly adapted to different workpiece geometries. Depending on the size of the workpiece, sufficient components can be stored for several hours of autonomous production, which is particularly important in low-manned production. The compact design also saves valuable production space — a cost factor that should not be underestimated in modern manufacturing operations.

Process optimization through intelligent control

The MSC 5 Duo is equipped with a Fanuc 0i-TF Plus controller, which is specially designed for turning applications.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

A central advantage for the user is the possibility of parallel programming during machining. The operator can prepare the next program while the machine is still producing. The control system also offers extensive process monitoring options.

The MSC 5 Duo is designed for integration into digital manufacturing environments. It can be easily connected to MES and ERP systems via standardized interfaces and supports the collection of production and machine data for process optimization.

The MSC 5 Duo is the answer to current market requirements in machining production. It combines twin-spindle machining with an integrated automation system, thereby achieving high productivity at attractive capital investments. The concept of the MSC 5 Duo with its integrated automation system is ideal for use in automated production lines in which several machines are linked to form a process chain.

As Peter Gröner emphasizes: “It is important to us that we do not create complexity for the sake of complexity. The MSC 5 Duo offers precisely the technical functions that our customers need for their specific production tasks — no more and no less. We consider this focus on the essentials to be a decisive factor.”
