API sets new standards with redesigned XD Laser and innovative Swivel Check

Metrology API sets new standards with redesigned XD Laser and innovative Swivel Check

2024-06-14 Source: API 2 min Reading Time

Related Vendors

CUMSA

Renishaw plc

DIPROFIL Diamantprodukter AB

The specialist for advanced metrology solutions, Automated Precision, announced the release of its redesigned XD Laser and the all-new wireless Swivel Check. According to the company, these innovations mark a significant leap forward in machine tool calibration, delivering enhanced performance and user convenience.

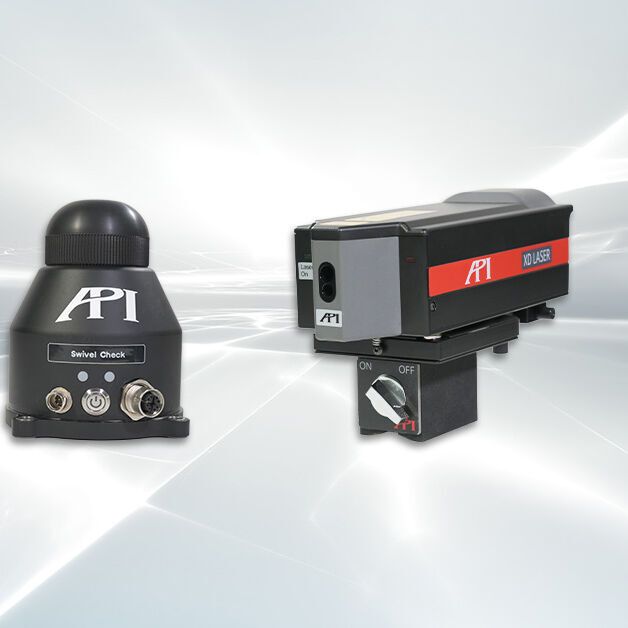

The new XD Laser and Swivel Check from API(Source: API) — The new XD Laser and Swivel Check from API
(Source: API)

Machine tools are the lifeblood of manufacturing. Much of quality control is dedicated to ensuring the accuracy of parts after they have left the machine. Proper maintenance and calibration of the machines, however, can help identify problems before they arise and save cost otherwise spent on rework, manhours, and scrapped parts.

API pioneered advanced machine tool calibration with Dr. Kam Lau’s invention of the straight-line interferometer for axial measurement of CNC machines. API’s XD Laser remains the only machine tool calibration laser that provides 6DoF measurement data for all axis errors in a single setup. And that innovation continues in the next generation of MTC products from API.

The XD Laser has been redesigned to offer performance and ease-of-use improvements while maintaining XD’s unmatched measurement speed and accuracy. Key enhancements include:

Improved thermal stability: Redesigned to maintain accuracy and reliability under varying thermal conditions.

Internal antenna: Features an internal antenna for improved connectivity, ensuring seamless communication and data transfer.

New AC adapter: Upgraded with a new AC adapter for more efficient power management, reducing downtime and increasing operational efficiency.

The API Swivel Check measures and calibrates machine tool rotary axes, swivel axis, tilt tables, and pendulum axes. It is the only tool that can be mounted off-center of the rotating axis to measure swivel axes and trunnions without disassembling critical machine-tool components. Swivel Check utilizes a servo-driven motor in conjunction with an electronic level and precision rotary encoder to measure multiple parameters in a single set-up. Used in conjunction with the API XD Laser Swivel Check can measure table wobble on horizontal rotary tables.

The Swivel Check has been completely transformed to offer unparalleled convenience and performance in machine calibration:

Cordless operation: The new wireless design eliminates the need for cables, providing greater flexibility and improved machine coverage.

40 percent reduction in size: Significantly smaller, the compact design allows for easier handling and positioning, making it ideal for a wide range of industrial applications.
