Wittmann Wiassist Adds Screw Module for Dwell Time

Digital assistant Wiassist update helps moulders select the right screw faster

2026-03-24 Source: Wittmann 2 min Reading Time

Related Vendors

Wittmann Battenfeld GmbH

HASCO Hasenclever GmbH + Co KG

CUMSA

BORIDE Engineered Abrasives

With a new screw module in its Wiassist app, Wittmann aims to make machine selection faster and more precise. By calculating melt dwell time in the plasticizing unit, the tool helps processors avoid sizing errors that can compromise efficiency and part quality.

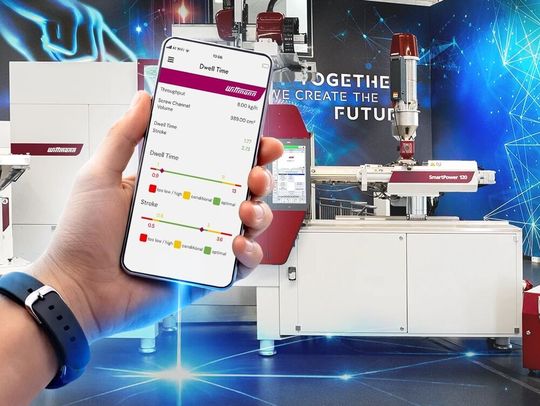

The Wittmann Group has optimized the “WiAssist” app to make it even easier for injection moulding practitioners to save time ...(Source: Wittmann Group) — The Wittmann Group has optimized the “WiAssist” app to make it even easier for injection moulding practitioners to save time ...
(Source: Wittmann Group)

An over- or undersized screw may impair both processing efficiency and parts quality. Therefore, the Wittmann Group has upgraded the Wiassist app by adding a new module. This module calculates the material’s dwell time inside the plasticizing unit, thus simplifying the selection of the screw size.

Wiassist supports injection moulders in selecting and setting up their injection moulding machines. As an app, the digital assistant is always available at hand via smartphone and saves users from laborious calculations.

The essential feature is the material database contained in the app. After the material, shot weight and cycle time have been entered, the app calculates in a few seconds the relevant process parameters, such as cooling time, internal mold pressure, injection pressure, screw speed and – as a new feature – also the melt’s dwell time inside the plasticizing unit. This additional function makes it possible to select the optimally suited injection molding machine for a given mold in less than one minute – for instance where injection molding machines with different screw sizes are available in a large machine fleet.

The new screw module can be used for 3-zone screws from the Wittmann Group. Here, the app calculates the optimal dwell time and gives recommendations for the appropriate screw diameter and metering stroke as well. A clear graphic display shows which values are within the optimal range, which ones are only partly suitable and which ones are not at all suitable.

Careful selection of the plasticizing unit is vital, because the screw has an immediate effect on parts quality and processing efficiency. If the screw diameter is too small, this shortens the dwell time, and the material is melted insufficiently. But if the screw is dimensioned too large, this lengthens the dwell time, with the possible result of thermal damage to the material and faulty parts as a consequence.

The Wiassist app offers a total of five functions:

Querying material properties

Assistance with the selection and setting of injection molding machines

Calculation of process parameters

Troubleshooting

Direct contact with Wittmann

The troubleshooting module includes an extensive database with frequent injection moulding faults, possible causes and problem-solving suggestions.

Via the contact button, users can either send an email to Wittmann or contact the service hotline directly by telephone.

(ID:50795598)
