Anyone who wants to be successful in plastic injection moulding today should rely on automation and the right production systems - just like Fuso.

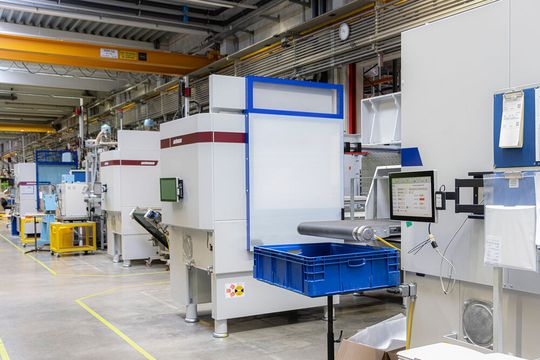

The plastics processor Fuso from Lower Austria relies on Smartpower injection moulding machines from Wittmann Battenfeld, among others, to meet the modern requirements of its customers.(Source: Wittmann Battenfeld) — The plastics processor Fuso from Lower Austria relies on Smartpower injection moulding machines from Wittmann Battenfeld, among others, to meet the modern requirements of its customers.
(Source: Wittmann Battenfeld)

The company Joh. Fuchs & Sohn (Fuso) was founded in 1947 in Waidhofen an der Ybbsitz in Lower Austria. The company entered the field of plastic injection moulding in 1964 with the production of orange-coloured lids for Ovomaltine cans. Today, Fuso employs around 80 people and produces sophisticated plastic parts from a wide variety of materials, including high-temperature plastics, on an area of almost 3,000 square metres.

The components produced range from small parts weighing from 0.03 grams to parts weighing up to two kilograms. In addition to the production of plastic parts using 1- or 2-component injection moulding, the company also offers overmoulding of functional parts, component assembly, bonding and welding as well as finishing using 4-colour pad printing. It also offers laser printing and 3D scanning for reverse engineering. 3D printing with a view to rapid prototyping can also be utilised. Injection moulding tools and automation systems are planned, designed and manufactured by Fuso's in-house toolmaking department.

Gallery

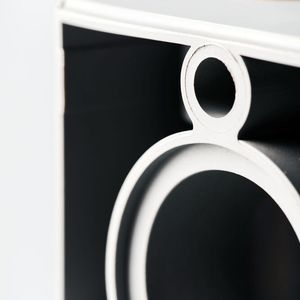

Close-up view of an injection-moulded housing for a Wittmann water flow regulator manufactured at Fuso.(Source: Fuso)

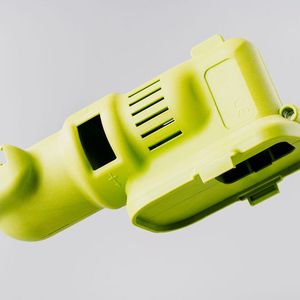

This plastic housing for a power tool is also injection moulded at Fuso on Wittmann-Battenfeld machines.(Source: Fuso)

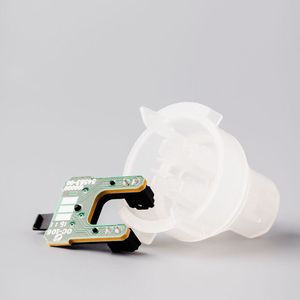

This housing for an aqua sensor for monitoring water quality is used in dishwashers. These parts are also manufactured at Fuso.(Source: Fuso)

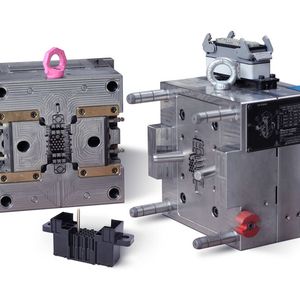

Fuso also maintains its own mould making facility. This image shows an injection mould produced using reverse engineering for the manufacture of an AMP connector (in the foreground). The connector is used in communication systems as part of critical infrastructures.(Source: Fuso)

Injection moulding with a focus on automation

The demands of Fuso customers in terms of the quality and properties of the parts with regard to tolerances, appearance and the materials used are constantly increasing, however. As the requirements for the produced parts and assemblies increase, so do Fuso's demands on injection moulding technology. The company's machinery is also very new and production relies on automation. All systems are therefore equipped with robots to ensure careful handling of the parts.

Energy efficiency of the machines and systems, connectivity with robots and peripheral devices and assistance systems are also becoming increasingly important.

Injection moulding machines with clamping forces ranging from 450 to 5,200 kilonewtons are used to manufacture the parts, 17 of which are from Wittmann Battenfeld. In addition, Fuso has long been a customer of the Wittmann Group in the automation sector and has over 40 handling devices with a payload of between 5 and 30 kilograms in use, ranging from the robot series 7 to the latest series 9 with R9 control.

Fuso relies on Smartpower injection moulding machines

The newer machines supplied by Wittmann Battenfeld are exclusively machines from the Smartpower series, according to the company. The machines operate with hydraulic technology and are equipped with fast-reacting servomotors and powerful fixed displacement pumps, says the manufacturer. This technology, combined with the Kers (Kinetic Energy Recovery System) installed as standard to utilise the braking energy within the machine, explains the high energy efficiency of the injection moulding machines. Other characteristics of the Smartpower are the small footprint and the swivelling injection unit, which ensures good accessibility to the screw barrel, making it easy and convenient to change the barrel.

With the exception of one machine, all are designed as insider cells. This means that the Wittmann robot and conveyor belt are integrated into the work cell. This variant offers a number of advantages. These range from space savings compared to systems with conventional automation systems to cost benefits, as all hazardous areas are already protected and fully certified. The robot cycle time can also be minimised thanks to shorter travel distances and the direct placement of the moulded parts on the conveyor belt.

New control and assistance system deliver impressive performance

The injection moulding machines delivered in 2023 are already equipped with the new B8X control system and the Hiq Flow assistance system, as Wittmann Battenfeld explains further. The B8X control system also works with control components developed in-house. These enable a higher internal clock frequency and therefore shorter reaction times to sensor signals, resulting in better reproducibility of parts with unchanged ease of operation and familiar visualisation. The Hiq Flow assistance system is an injection control system that can be used to compensate for viscosity fluctuations in the plastic melt. This function enables process automation and compensates for even minimal fluctuations in material quality. According to Wittmann Battenfeld, Fuso was so impressed by the system that it was retrofitted to all machines where it was technically possible and economically viable.
