Roemheld's Innovative Tool Handling and Workholding Solutions

Mach 2026 Roemheld spotlights compact tool handling and quick change solutions

2026-02-02 Source: Roemheld 4 min Reading Time

Related Vendors

Roemheld will use Mach to highlight a broad portfolio of tool handling and workholding solutions aimed at faster, safer and more flexible production.

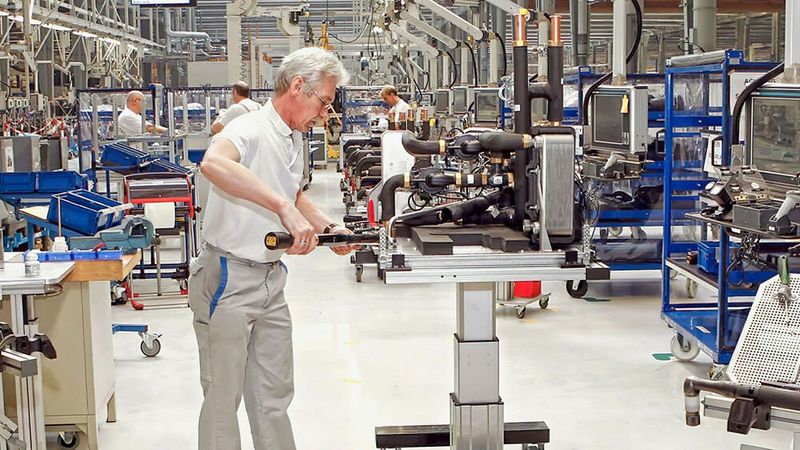

Featured also will be the Roemheld Moduhub equipment range, designed to help operators handle heavy or awkward components safely and efficiently during manual assembly. It also has the facility to feed back production data.(Source: Roemheld) — Featured also will be the Roemheld Moduhub equipment range, designed to help operators handle heavy or awkward components safely and efficiently during manual assembly. It also has the facility to feed back production data.
(Source: Roemheld)

At Mach, Roemheld will launch the Elmo RW 850, a compact addition to the company’s line of mould and die changing carts, designed for environments where space is at a premium. Unlike larger models in the range, the 850 variant is especially manoeuvrable. With its tight turning radius, it is able to negotiate narrow aisles and cramped production floors that often make changing injection moulds and punching dies arduous or logistically difficult.

Movement of the cart is electrically powered under manual control. What sets the Elmo apart is its integration of ergonomic safety measures and precision control. It features an electro-hydraulically actuated scissor lift with precise height adjustment and a table equipped with hydraulic ball bars, allowing near-frictionless positioning of tools weighing up to 850 kg. For security, the table has protection rails around the periphery and the ball inserts automatically lower during transport, ensuring the tool sits firmly on the table.

Gallery

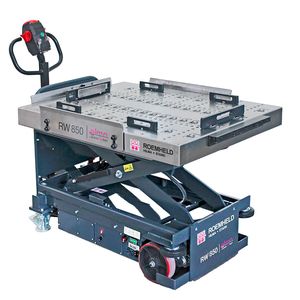

The new Elmo RW 850 mould and die changing cart from Roemheld will be launched at Mach 2026.(Source: Roemheld)

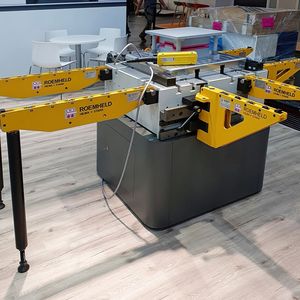

On the stand will be an example of Roemheld’s QDC (quick die change) product line, capable of accepting a tool delivered from the front or either side.(Source: Roemheld)

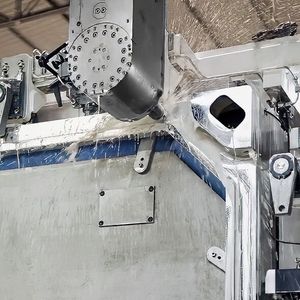

The arm of Roemheld’s swing clamps can swivel out of the way automatically to enable workpiece loading and unloading, or even temporarily in a CNC cycle to allow machining of the workpiece area it was holding.(Source: Roemheld)

Gallery with 5 images

While Roemheld’s RW range is for entry-level mould and die changing, where the operator manually slides the tool onto the machine bed, its QDC (quick die change) range features integrated push-pull chain drives for medium to heavy tools. At the touch of a button, these systems grasp the tool and pull it into position, and push it out again after use, removing the need for physical effort from the operator.

An example from this range will be on the stand (Hall 6-450) in the form of a station that can be loaded ergonomically with a tool from the front or from either side. All QDC systems enable manufacturers to handle smaller batch production more economically, while significantly reducing strain and injury risks.

Handling equipment for assembly

Featured also will be Roemheld’s Moduhub equipment. Its primary function is to provide a standardised platform for manual production where workpieces can be positioned, clamped and moved with high precision. Using a plug-and-play approach, the system allows manufacturers to quickly swap out different modules, such as rotating units, tilting stations and height adjusters, to suit the specific ergonomic and technical needs of a project.

Moduhub is engineered for Industry 4.0 integration. It often features integrated ducting for power, compressed air and data, ensuring that the workspace remains free from external cabling. Connectivity allows the equipment to communicate with control units, facilitating real-time monitoring of clamping pressures and positioning data. For businesses looking to scale, it offers a future-proof solution that balances human-centric ergonomic design with the efficiency of a highly connected, automated environment.

Workholding for machining

Making another appearance will be the Hilma.UC 125, a mechanically-operated, self-centring machine vice designed for high-precision 3- to 5-axis milling. The modular workholding station features a design that allows easy tool access from all sides, enabling the use of short cutters for increased accuracy.

The system utilises two individual jaws that travel simultaneously toward the centre to clamp workpieces with a force of up to 52 kN. Precision is maintained through a central bearing that ensures every component is located within ± 0.01 mm repeatability, while an active pull-down mechanism prevents the workpiece from lifting once secured.

The universal clamp (UC) is capable of accommodating a variety of prismatic and round geometries. Its modular concept includes numerous jaw options up to 125 mm wide and an opening that can be extended to 600 mm, which is among the largest available on the market.

To prevent base distortion, the vice employs separate tensioning and adjustment spindles so that clamping forces are not applied directly to the base. For mounting flexibility, the Hilma.UC 125 can be secured directly to a machining table or integrated into a zero-point clamping system using optional adapter plates.

Stark.intelligence digital zero-point clamping technology is a sensor-based system that allows digital status monitoring and recording of clamping elements, providing transparency in production and enabling predictive maintenance. (Source: Roemheld)

Further workholding products

Demonstrating the German manufacturer’s diverse range of products for securing parts for machining, Roemheld will also have on its stand a variety of powered swing clamps, which are either hydraulically or electrically actuated. They function by rotating a clamping arm over a workpiece and then pulling down to secure it and are primarily designed for use in automated production environments. The arm swivels completely out of the way when retracted, leaving the work area unobstructed for loading and unloading.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Electric swing clamps are an ideal eco-friendly solution for environments. Driven by a maintenance-free 24V DC motor, the units often utilise IO-Link connectivity to provide real-time data feedback on clamping force and position. They are inherently safe due to a self-locking spindle drive that maintains holding pressure even during a power failure and they include built-in sensors that immediately halt movement if the arm encounters an obstruction.

Hydraulic swing clamps are the industrial standard for applications requiring maximum holding power. Capable of generating forces exceeding 40 kN, the units are available in single-acting versions that retract via spring force or double-acting versions that use hydraulic pressure for faster, more predictable cycle times in automated lines. They are built for extreme durability, often rated for a million cycles, and offer various mounting styles including threaded-body versions that can be integrated directly into fixtures to save space.

Additionally, there will be a range of Stark zero-point clamping solutions on the stand to entice visitors. Available in manual, hydraulic and pneumatic versions, they are capable of repeatability as high as ± 3 microns. As with all zero-point systems, the primary goal is to move fixturing time offline. While one part is being machined, the operator can prepare the next job on a separate pallet. Changeover takes only seconds, reducing setup times by up to 90 percent, significantly increasing spindle uptime and making it profitable to run small batches or even single-piece orders.
