OGP's New SmartScope M130: Large-Format 3D Metrology System

Quality control OGP introduces Smartscope M130 for high-precision metrology of large parts

2025-10-14 Source: Optical Gaging Products 1 min Reading Time

Related Vendors

creaform-ametek-logos-vertical-rgb (Creaform)

AMETEK GmbH Division Creaform Deutschland

The new SmartScope M130 from OGP extends the M-Series range with a large-format 3D multisensor metrology system. It features enhanced optical performance, higher throughput, and increased capacity for precise measurement of large and heavy components.

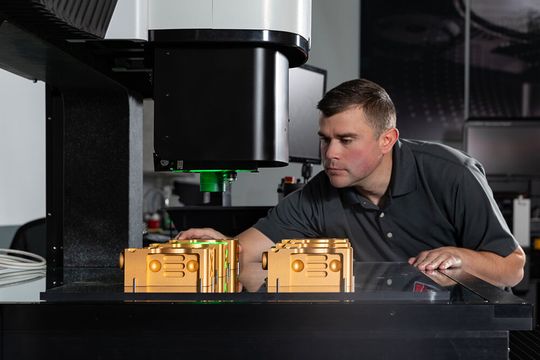

The new Smartscope M130 from OGP expands the M-Series with advanced optical performance and increased capacity for precise measurement of large components.(Source: OGP) — The new Smartscope M130 from OGP expands the M-Series with advanced optical performance and increased capacity for precise measurement of large components.
(Source: OGP)

Optical Gaging Products has introduced the SmartScope M130, the latest model in its evolving line of SmartScope 3D multisensor metrology systems. Designed for manufacturers of large and heavy components, the SmartScope M130 offers improved image accuracy, optical performance, and throughput in a large-format 3D video measurement platform.

At the core of Smartscope M130 is the patented Intellicentric-M Optical System, featuring fixed optics with a 20-megapixel camera and proprietary Virtual Zoom technology. Built from the ground up at OGP headquarters in Rochester, NY, the streamlined Intellicentric-M optics employ a variety of exclusive technologies allowing for instant magnification changes throughout the same zoom range as a traditional mechanical zoom system, resulting in faster runtime while requiring far less downtime for maintenance.

Smartscope M130 is the ideal choice for manufacturers making large parts that require advanced throughput solutions. The Intellicentric-M optical system combined with advanced sensors, illumination, and accessories, achieves class-leading optical measurement speeds.

With a robust standard XYZ travel of 790 x 815 x 200 mm, optional 300 or 400 mm Z-axis, and payload capacity of 75 kg (165 lbs), Smartscope M130 offers next-generation M-Series benefits to manufacturers producing large parts. A new innovative base design results in a lower stage height, allowing users to load and unload heavy parts or oversized fixtures with ease.
