New slicing software for Aim 3D’s Voxelfill process

Premiere at Formnext 2023 New slicing software for Aim 3D’s Voxelfill process

2023-11-02 Source: Aim 3D 5 min Reading Time

Related Vendors

AIM3D GmbH

HASCO Hasenclever GmbH + Co KG

AMPCO METAL Deutschland GbmH

Renishaw plc

Create it Real and Aim 3D partner to advance 3D printing capabilities with the integration of Voxelfill technology into the Exam 255 and Exam 510 systems. This collaboration brings the innovative Slicex software solution, leveraging Voxelfill's cross-layer filling strategy to produce stronger, more uniform 3D components in a range of materials including metals and ceramics.

Visualisation of Slice EX on the user interface of an ExAM 510 from Aim 3D(Source: Aim 3D) — Visualisation of Slice EX on the user interface of an ExAM 510 from Aim 3D
(Source: Aim 3D)

The Danish software company Create it Real from Aalborg entered into a development partnership with Aim 3D to integrate the Voxelfill process as a plug-in into the system technology of the Exam 255 and Exam 510. The slicing software solution Slicex, which is based on Create it Real's Real Vision Slicer, will in future enable users to make optimum use of Aim 3D's patented Voxelfill technology to overcome inhomogeneous strengths and to achieve selective densities of 3D components made of metals, plastics, fibre-filled plastics and ceramics.

Aim 3D's Voxelfill process overcomes inhomogeneous strengths by making use of a cross-layer filling strategy. The layer-based 3D build-up processes currently used in 3D printers often exhibit inhomogeneous strength values. With the now patented Voxelfill process, Aim 3D is taking a new approach that overcomes inhomogeneous strengths and achieves defined selective densities in the component. With Create it Real’s new slicing software solution Slicex, users are given the opportunity to exploit the potential of Voxelfill in the construction of 3D components. As a premiere, both companies will demonstrate the Slicex 3D printer software and the Voxelfill plug-in at Formnext 2023 in Frankfurt.

Gallery

3D CEM printer Exam 510 from Aim 3D(Source: Aim 3D)

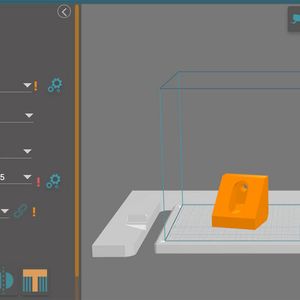

On-screen visualisation of Slice Ex with the new Voxelfill technology(Source: Aim 3D)

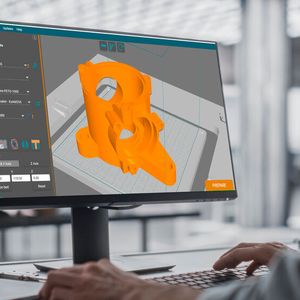

Visualisation of Slice EX at the workplace(Source: Aim 3D)

With the Slicex plug-in, users of the Aim 3D systems Exam 255 and Exam 510 will benefit from the fact that they now have comprehensive access to the 3D component building process with Voxelfill. Furthermore, their input and feedback on the subject of slicers can be passed on via Aim 3D directly to the developer Create it Real in order to further optimise the process. Clemens Lieberwirth, CTO at Aim 3D: “With the development of Voxelfill, the user now has the possibility to use the unique new process of Voxelfill to improve the z-strength and the printing speed. However, these modules are currently still under development.”.Jacob Nissen, CEO of Create it REAL, expresses his excitement about the partnership: “Aim 3D is an ideal partner, backed by a strong academic background and a solid theoretical foundation. Their clear vision aligns perfectly with our capabilities, enabling us to collaborate effectively in achieving their goals.”

Voxelfill principle overcomes inhomogeneous strength properties

In additive manufacturing of polymers, components have inhomogeneous strength properties due to the layer-based build process. This manifests itself primarily in the form of tensile and flexural strength shortcomings, as well as very brittle behaviour along the Z axis. In contrast, the strengths achieved along the X and Y axes with some processes are already close to the strengths possible with conventional injection moulding. Aim 3D has already demonstrated this with the processing of fibre-filled components based on PA6 GF30 material. The phenomenon of inhomogeneous strength properties must be resolved in order to enable a wide applicability of 3D-printed components. By using the 3D extrusion technology of the CEM process, Aim 3D has developed a Voxelfill strategy that overcomes these limitations and increases the cost effectiveness of the CEM process. Voxelfill can also be used for multi-material components and is suitable for constructing 3D components using plastics, metals and ceramics.

The two-stage Voxelfill process at a glance

With the Voxelfill approach, components are no longer created exclusively in layers (i.e. 2.5D), but utilise cross-layer filling by using so-called voxels as volume areas. To do this, , the component contour is first created as usual as the basic structure using one or more webs of the extruded material. A lattice pattern is created inside the component, which defines the boundaries of the volume elements to be filled, similar to cavities. This structure of the voxels to be filled resembles the honeycomb in a beehive. The Voxelfill strategy now comprises two process stages: 1. Generation of a lattice structure: the CEM system repeats this structure up to a defined height of the volume elements, then at this point the previously created cavities (voxels) are filled by injecting thermoplastic material with the extruder. 2. Filling phase of the voxels: now the second, even more important component of this 3D printing strategy is deployed: when the volume areas are filled, this does not include filling all voxels in one plane. This would again result in a Z direction weakness directly in the “seam” plane. By shifting the volume elements halfway up the voxel, a kind of “brick-like bond” is created in the component, resulting in the yield line being offset. This results in an enormous increase in strength and also improves the elasticity of the components in the Z direction. In addition, the introduced volume elements greatly reduce the printing time for fully filled components and thus significantly increases the cost-effectiveness of the CEM process.
