New pin and insert designs improve M23 19-Pole Field wireable connectors

Connectors New pin and insert designs improve M23 19-Pole Field wireable connectors

2023-11-02 Source: Mencom 1 min Reading Time

Related Vendors

Mencom Corporation


Meusburger Georg GmbH & Co. KG

AMPCO METAL Deutschland GbmH

Renishaw plc

Mencom M23 Field Wireable Connectors stand out in the market for their flexibility in various industrial signal and control applications. The design enhancements in pins and inserts facilitate effortless wiring and re-wiring, eliminating the need for old retention clips.

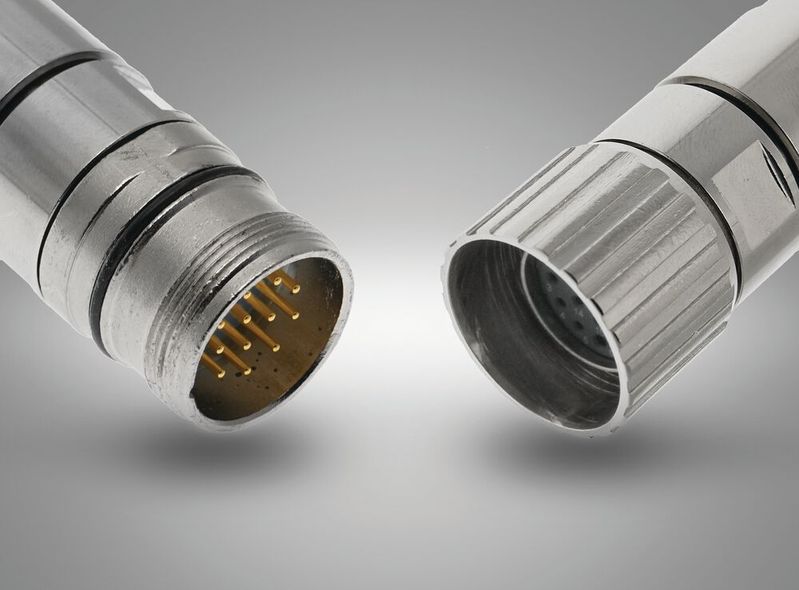

The rugged connections enable faster repairs and compatibility.(Source: Mencom) — The rugged connections enable faster repairs and compatibility.
(Source: Mencom)

Mencom M23 Field wireable connectors are flexible passive devices used for a wide variety of industrial signal and control applications. The “Crimp and Poke” method of wire termination provides a quick solution where pre-moulded cordsets are not readily available, or where cabling needs to be repaired.

The improved pin and insert designs make using these connectors even more effective and efficient. A simple change to the way the pin is captivated in the insert makes wiring, and re-wiring, if necessary, a quick and easy task. Gone is the old retention clip that could possibly be damaged when re-wiring or repairing. A simple extraction tool can now be used to quickly remove any contact. The pins and sockets for the M23 19-pole products accept a wire gauge range of 24-18 AWG.

Mencom M23 19-pole field wireable connectors offer rugged and reliable connections with error-free field installation. The universal design also provides a means for shielding the cable if needed.

As a convenience, Mencom also offers a crimp tool (CCPZ-MIL) a locator tool (MCTP-V19) and the extraction tool (MCV19ES) to assist with assembly and disassembly, as well as MCV-001 to assist with the assembly of the female threaded connector.
