Hot Runners Modular mould design concept for lightweight syringes

Author / Editor: Henning Becker* / Ahlam Rais

The worldwide demand for disposable vaccination syringes is constantly increasing, not least due to the Corona pandemic. Werkzeugbau Ruhla, one of the leading suppliers of modular mould solutions for the medical industry, realised two high-cavity moulds for the production of a three-part safety vaccination syringe in a short time with Ewikon as a partner in the hot runner sector.

Related Companies

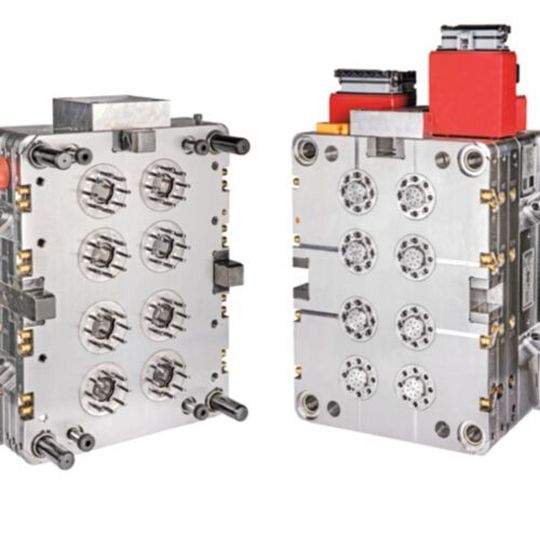

The 64-cavity mould for production of the syringe barrel. The cavities are arranged in circles around radial hot runner nozzles.
The 64-cavity mould for production of the syringe barrel. The cavities are arranged in circles around radial hot runner nozzles.
(Source: Werkzeugbau Ruhla)

Billions of disposable syringes are required for standard vaccinations. Now, with the beginning of vaccination drives against the global pandemic of Covid-19, the demand for syringes is set to increase further and hence, production capacities must be expanded across the globe. Injection moulds that can produce vaccination syringes quickly, efficiently and with minimal material usage are therefore in high demand.

In this context, Werkzeugbau Ruhla in Seebach, Thuringia, Germany, designed two 64-cavity full hot runner moulds for the production of barrels and pistons which can be used in a three-part 0.5 ml safety vaccination syringe made of PP. These syringes can be utilised for primary vaccinations.

Gallery
Gallery with 5 images

In many countries, strict specifications of the World Health Organisation (WHO) are followed i.e. vaccination syringes must be designed in such a way that multiple use is not possible. As a specialist for medical precision mould solutions, Ruhla consistently relies on a modular concept with a high degree of standardisation in mould construction, which was developed and perfected in a long-standing partnership with hot runner supplier Ewikon. The focus is on a compact and weight-optimised mould design with efficient cooling and high ease of maintenance, which can be used on the smallest possible machine sizes.

Multi-tip nozzle concept

On the hot runner side, the focus is on lateral direct gating with the high-performance, efficient and innovative HPS III-MH multi-tip nozzle concept, which is used in two nozzle versions and guarantees the high gating quality required for medical components. For the production of syringe barrels, a radial nozzle — especially developed for syringe production — is used. It features extended tip inserts and a particularly slim nozzle body whose immersion depth can be flexibly and easily adapted to different article lengths.

“With this nozzle version, there is enough installation space between the nozzle body and the article contour to provide our mould inserts with a surrounding cavity cooling”, explains Udo Köllner, Managing Director at Ruhla, "This design is standard for all our syringe moulds and, in combination with inner cores that are also cooled, allows very short cycle times. The design of the mould inserts also makes them very easy to replace.” For the production of syringe plungers, which are arranged in a row in the mould, the linear version of the nozzle with a rectangular body is installed.

All mould solutions from Ruhla are developed with special attention to a high degree of maintainability, which facilitates routine maintenance work even when used worldwide. An important contribution to this is made by the Ewikon tip exchange concept, which enables the tip inserts to be easily replaced on the machine without having to dismantle the mould.

One of the lightest syringes

“In addition, there is the modular design, which integrates the nozzles including the complete wiring into a separate mould plate, which can simply be pulled off in case of a nozzle exchange”, Udo Köllner points out, “This makes the nozzle easily accessible and it can be dismantled in a particularly time-saving manner. Again, Ewikon supports us perfectly with a corresponding design of the wiring boxes with special plug-in connections.”

The article design for both components of the syringe was optimised in close cooperation between Ruhla and the end customer. This resulted in the greatest possible material savings through reduced wall thickness and length. “With a weight of only 1.1 g for the syringe barrel and 0.35 g for the plunger, we were able to save 25 percent of material compared to conventional vaccination syringes of the same size,” says Ruhla Managing Director Lena Lüneburger, “Which means we have one of the lightest syringes currently available on the market.” Ewikon provided support based on filling studies and extensive calculations of pressure and shear in the hot runner system to ensure efficient mass production with short cycle times.

Vaccination syringes for one time use

Two circular recesses are integrated into the wall of the syringe barrel to form defined locking positions for the plunger. When the syringe is drawn up, the plunger locks into the rear position when the filling volume of 0.5 ml is reached. After the complete injection of the vaccination dose, the front locking position is reached. Post this, if an attempt is made to fill the syringe a second time, the plunger will tear off at two defined predetermined breaking points and the syringe will become unusable. The syringe plunger was also consistently designed for low weight and maximum material savings by using a three-rib design. Furthermore, the design of the three-part vaccination syringe requires no slide mechanism during demoulding and thus simplifies the mould construction considerably.

Despite the extremely high number of cavities, a very compact mould design could be realised. In both moulds, eight nozzles are installed in radial respectively, linear version in two vertical rows of four. In the 446 x 596 mm syringe barrel mould, eight parts are arranged in a circle around each nozzle. The gating is done with heat-conductive tips angled by 60° on the side wall of the cylinder, close to the bearing of the inner core, in order to minimise core displacement. In the syringe plunger mould, eight parts per nozzle are placed in two rows of four on both sides of the rectangular nozzle body. The plunger is gated on the grip plate. The mould dimensions here are 546 x 596 mm. The hot runner technology for both moulds was supplied by Ewikon as a complete hot half with integrated electrical wiring and connection technology and was completed at Ruhla with contour plates and the ejector side.

The Covid-19 vaccination dose

Thanks to the high level of standardisation in conjunction with modern production technology — including a fully automated production cell for electrodes — Ruhla was able to realise the entire project from receipt of order to pre-production testing in its own technical centre to delivery to the customer with a very short lead time of only 16 weeks. With a cycle time of approximately 10 s for the syringe barrel, the expectations were fully met.

The delivery comes with a comprehensive service package that not only includes the most common spare parts and a detailed operator's manual, but also detailed disassembly and assembly videos for the most important maintenance work. The overall concept is convincing. Another mould set for the same syringe size has already been ordered by an Asian customer and a 0.3 ml version — the common Covid-19 vaccination dose — is already in the starting phase. “This is where the advantages of our modular concept become apparent,” says Lüneburger, ”because even the smaller version can be realised quickly and easily by simply moving one of the recesses in the syringe barrel.”

* *Henning Becker is Head of Marketing, Ewikon Heißkanalsysteme, Frankenberg, Germany.
