High-Precision Grinding Processes: Vomat's Ultra-Fine Filtration Systems

Grinding equipment Ultra-fine coolant filtration as the key to productivity benefits

2025-06-30 Source: Oelheld 1 min Reading Time

Related Vendors

Oelheld US, Inc

HASCO Hasenclever GmbH + Co KG

Renishaw plc

DIPROFIL Diamantprodukter AB

High-precision grinding processes are essential in modern cutting tool manufacturing. The quality of the metalworking fluids (MWF) plays a decisive role here. With its ultra-fine filtration systems, Vomat from Treuen/Germany offers solutions that not only improve tool quality, but also reduce production costs and promote sustainability.

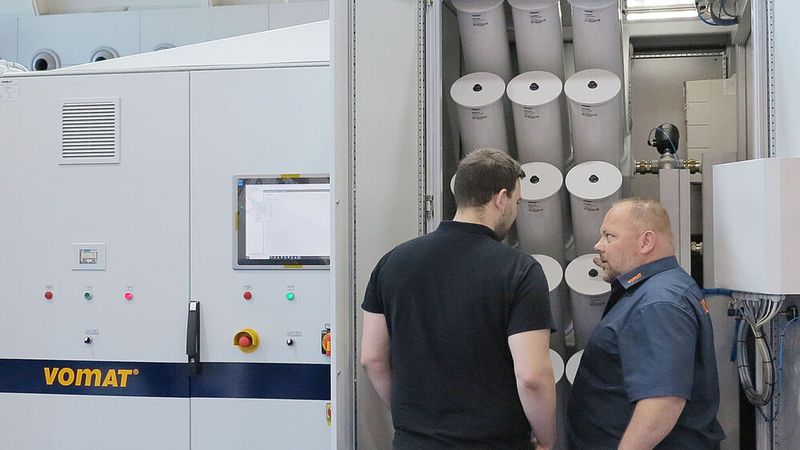

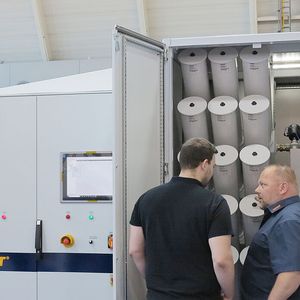

High-performance precoat filters work without additional filter aids and achieve a cleanliness class of NAS 7 (3-5 µm).(Source: Oelheld) — High-performance precoat filters work without additional filter aids and achieve a cleanliness class of NAS 7 (3-5 µm).
(Source: Oelheld)

The manufacture of precision tools requires maximum accuracy. In addition to state-of-the-art grinding technology and high-quality materials, the purity of the coolant is crucial. Contamination can impair the surface quality and shorten the service life of the grinding tools. This is where Vomat comes in with ultra-fine filtration systems that separate 100 percent of the dirty and clean oil in a full-flow process, thus ensuring consistently high lubricoolant quality.

Technological advantages of Vomat filters:

Gallery

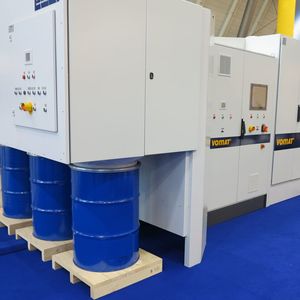

Vomat uses a specially developed sedimentator for fully automatic processing of recyclable materials. The valuable grinding sludge is disposed of directly into a suitable transport container for recycling companies.(Source: Oelheld)

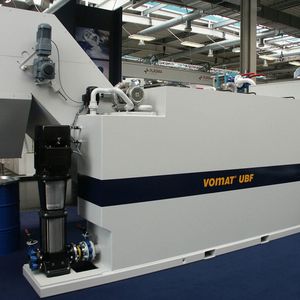

With the Vomat UBF vacuum belt filter, various ferrous and non-ferrous alloys (hard metals, disk abrasion, binding agents, etc.) can be filtered extremely cleanly and energy-efficiently without a pre-separation system.(Source: Oelheld)

Modular design: From individual systems to central systems, Vomat offers flexible solutions that can be adapted to individual production conditions.(Source: Oelheld)

High-performance precoat filters: these filters work without additional filter aids and achieve a cleanliness class of NAS 7 (3-5 µm).

Automated backwash cycles: The filter elements are cleaned as required, which extends their service life and reduces energy consumption.

Precise temperature control: With a control accuracy of ±0.2 K, the temperature of the cooling lubricant is kept constant, which minimizes thermal influences on the grinding result.

Modular design: From individual systems such as the FA 70+ to central systems, Vomat offers flexible solutions that can be adapted to individual production conditions.

Steffen Strobel, Sales Manager at Vomat: “Thanks to advanced high-performance filters, not only is the cooling lubricant filtered extremely cleanly and energy-efficiently, but a special sedimentator also enables sustainable processing of recyclable materials. This means that the filter system can continue to run while the recyclables are being disposed of. Disposal takes place directly into a suitable transport container of the recycling companies (20 or 200 l container). This saves costs and makes an important contribution to environmental protection.”

The extended service life of the cooling lubricant thanks to effective ultra-fine filtration reduces the need for new purchases and minimizes disposal costs. It also reduces wear on the grinding tools, which further lowers production costs. By reducing energy consumption and waste, Vomat contributes to sustainable production.
