Guill's Patent-Pending Series 400 Extrusion Tooling for Automotive and Medical Applications

Extrusion Guill unveils Series 400 extrusion tooling for enhanced strength and flexibility

2025-06-07 Source: Guill Extrusion 1 min Reading Time

Related Vendors

Guill introduces its patent-pending Series 400 extrusion tooling — engineered for strength, adaptability, and precision. Designed for use with a wide range of corrugated equipment, the new system eliminates weld lines, enhances product integrity and supports fast changeovers across automotive and medical applications.

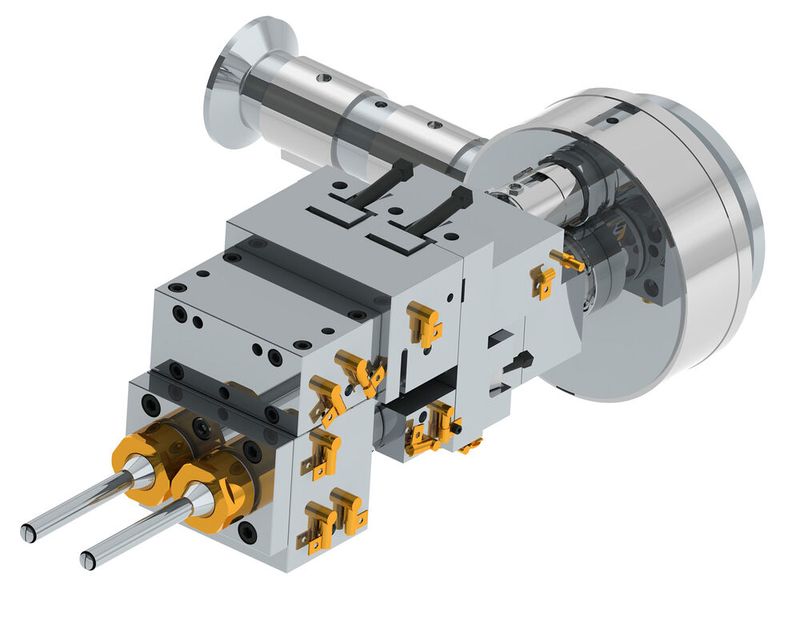

Guill’s Series 400 crossheads deliver weld-line-free corrugated tubing with enhanced strength, even heat distribution, and multi-layer versatility.(Source: Guill Extrusion) — Guill’s Series 400 crossheads deliver weld-line-free corrugated tubing with enhanced strength, even heat distribution, and multi-layer versatility.
(Source: Guill Extrusion)

Extrusion tooling expert Guill presented their patent pending extrusion tooling, Series 400. It’s adaptable to a wide variety of corrugated equipment and molds. According to the company, the Series offers a host of benefits for OEMs, as well as for automotive and medical applications.

The unique tooling includes the multi-port spiral flow design that provides a balanced compound distribution with no weld lines to the corrugator. The elimination of weld lines significantly increases the finished product’s overall strength.

Models offered include 420, 423, 432 and 434. Features of the 400 Series include Spiderless Inline, fixed center or adjustable, built in cartridge heaters, adjustable gum space, low inventory, expandable to multi-layer, heated core pin and one-piece body/flow diverter.

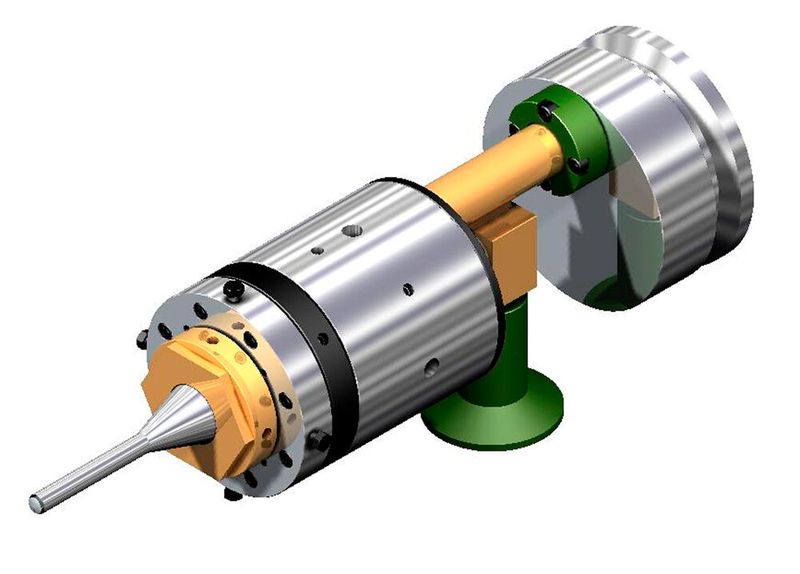

With its spiderless design and multi-port spiral flow, the Series 400 extrusion tooling ensures consistent, high-quality output for corrugated tube production.(Source: Guill Extrusion) — With its spiderless design and multi-port spiral flow, the Series 400 extrusion tooling ensures consistent, high-quality output for corrugated tube production.
(Source: Guill Extrusion)

Since there are no spider lines, there’s room for more air and no cold legs. Most products should be run fixed. Users can change only one component and become fully adjustable. The cartridge heaters offer even heat for better flow and ensure there aren’t any cold spots. More control of product size is achieved with adjustable gum space. Low inventory results in no burning or stagnation-quick color change. Due to the fact that it’s expandable to multi-layer, the crossheads run a variety of products. Lastly, benefits of the heated core pin and one-piece body/flow diverter are better temperature control and easy cleaning-quick changer, respectively.
