Eldorado gundrilling machine with new fixturing design

Advanced counter-rotation technology Eldorado gundrilling machine with new fixturing design

2024-06-06 Source: Kays Engineering 1 min Reading Time

Related Vendors

Kays Engineering, Inc.

HASCO Hasenclever GmbH + Co KG

Renishaw plc

DIPROFIL Diamantprodukter AB

The Eldorado M75-30 gundrilling machine now features a redesigned counter-rotation fixturing assembly. This updated fixture rotates the workpiece in the opposite direction of the gundrill, enhancing the accuracy of the gundrilling process. The new design includes a more powerful and durable gear motor assembly.

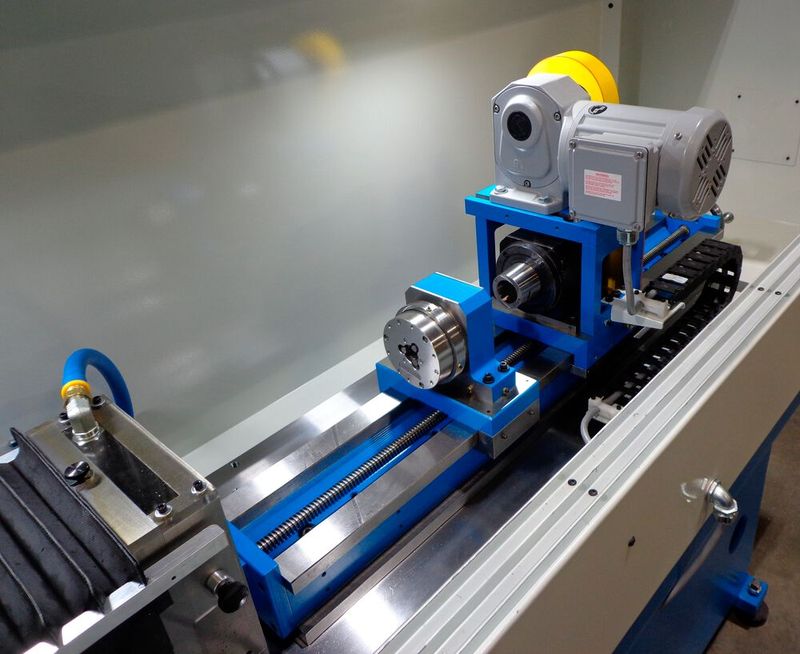

The Eldorado M75-30 gundrilling machine now features an updated design for its counter-rotation fixturing assembly.(Source: Kays Engineering) — The Eldorado M75-30 gundrilling machine now features an updated design for its counter-rotation fixturing assembly.
(Source: Kays Engineering)

The Eldorado M75-30 gundrilling machine features a new design for its counter-rotation fixturing assembly. During the gundrilling process, the workpiece is held in a fixturing assembly that rotates the part in the opposite direction of the gundrill rotation. This “counter-rotation” of the workpiece improves the accuracy of the gundrilling process. The new fixture design includes a gear motor assembly that is more powerful and durable than the previous design.

The Eldorado M75-30 has a maximum gundrilling diameter of 19 mm and a maximum drilling depth of 30 762 mm. The machine features a box way design as opposed to linear guide ways. This results in superior vibration damping, extended tool life, and improved surface finish. Eldorado machines are designed and manufactured in the USA.
