Clean grinding oils are essential for efficient and high-quality tool manufacturing. Vomat’s ultra-fine filtration systems meet the growing demand for resource-saving solutions, reducing costs and energy use.

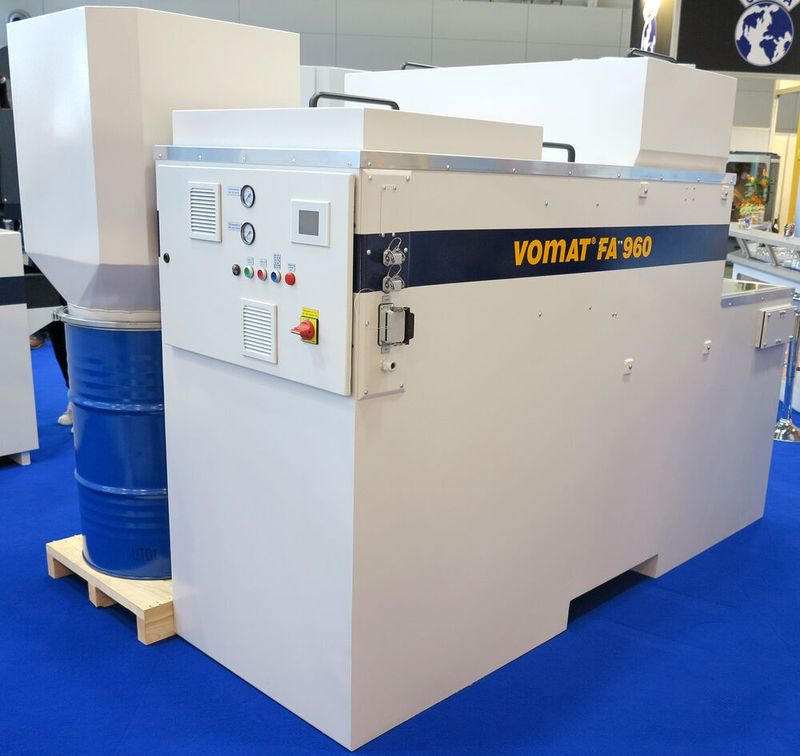

Vomat filters, for example from the FA series — from individual to large-scale industrial central systems — ensure economic and ecological success in harmony.(Source: KSKOMM) — Vomat filters, for example from the FA series — from individual to large-scale industrial central systems — ensure economic and ecological success in harmony.
(Source: KSKOMM)

Extremely clean grinding oils are the basis for tool manufacturers to grind cutting tools economically, reliably and to the highest quality standards. Ultra-fine filtration therefore represents an important piece of the mosaic in the overall grinding system. At the same time, the demand for efficient and resource-saving filtration solutions is growing all the time: coolants that can remain clean in the system for a long time save costs by reducing non-productive times, as well as in terms of energy consumption, procurement, storage and recycling.

Steffen Strobel, Technical Sales Manager at filter manufacturer Vomat in Treuen: “Efficient and resource-saving ultrafine filtration is becoming increasingly important. The decision on the right ultra-fine filtration system therefore has a direct impact on production costs. Vomat manages the balancing act — in addition to high efficiency and quality, our filter solutions also contribute to sustainability in production.”

Gallery

There was great interest in the performance of Vomat filters and their support for sustainable grinding in tool and metal processing during the latest Grindinghub.(Source: KSKOMM)

Whether for the ultra-fine filtration of water-soluble, fully synthetic cooling lubricants, emulsions or oils contaminated with abrasion or chips — with the UBF vacuum belt filter, filter manufacturer Vomat provides a high-performance system that filters out abrasive residues, such as metals and non-ferrous alloys, from a wide variety of lubricants and coolants.(Source: Vomat)

Vomat filters, for example from the FA series — from individual to large-scale industrial central systems — separate 100 percent of dirty and clean oil in full flow using durable high-performance precoat filters. The purity is in quality class NAS 7 (3 — 5 µm). State-of-the-art filter, cooling and disposal technology — including HSS pre-filters for mixed processing if required — ensure economic and ecological success in harmony. In addition, Vomat ultra-fine filtration systems are low-maintenance and take up little valuable production space thanks to their compact design.

Save money: Filtering and backwashing as required

Steffen Strobel: “In our systems, the filter flow and backwash cycles are controlled automatically as required. This extends the service life of the filter elements and saves energy and costs.” And this is how it works: Vomat filters adapt optimally to the production process. For example, if grinding machines are run more slowly, only the required amount of coolant is filtered. Or if a Vomat central system filters lubricoolant from several grinding machines, the filter performance automatically adapts to the cutting volume. At the same time, less heat is added to the medium, which in turn requires less cooling capacity. This also minimizes energy consumption.

Demand-based backwashing provides further advantages: With Vomat filters, the backwash cycles are controlled depending on the degree of soiling of the filter elements. If relevant values are reached, the backwashing process begins, in which each filter is backwashed individually and with a time delay. The other filters ensure a continuous supply of clean oil. In the disposal unit, the backwash oil is then separated as far as possible from the sludge and conveyed to the dirty oil tank. According to Vomat, the design and technical advantages significantly increase the service life of the individual filter elements, the cooling lubricant can remain in the system for longer and the filter and machine components are subjected to less stress. The bottom line is that energy consumption is significantly optimized.

Multi-talented vacuum belt filter for a wide range of metalworking fluids

Vomat provides the vacuum belt filter (UBF) for resource-saving, ultra-fine coolant filtration in a wide range of industrial metalworking applications. This high-performance all-rounder can be used to filter various ferrous and non-ferrous alloys, hard metals, disk abrasion, binding agents, etc. without a pre-separation system. UBF filters various lubricants and coolants such as water-soluble, fully synthetic cooling lubricants, emulsions or oils contaminated with abrasion or chips — in the smallest of spaces and with high filter performance and low operating costs.

During operation, a vacuum is generated in the suction chamber and the filter or system pumps draw in the cooling lubricant to be cleaned through the high-performance filter belt and make the cleaned medium available to the system circuit without interruption. Depending on the material to be filtered and the shape of the filter cake, the filter fineness is 10 to 30 µm. In addition, for grinding oils and water-based cooling lubricant solutions, an ultra-fine filter system can be connected downstream in full flow or bypass to further increase the filter fineness. The fully automatic cleaning system of the belts enables user-friendly disposal of the filtered or residual material directly into the transport containers of the recycling companies.

Vomat offers the new vacuum belt filter in different versions with a filterable volume flow of 200 l/min to 2,000 l/min. The integrated or external cooling by means of a compression or cold water-driven, service-friendly cooling unit has a control accuracy of +/- 1.0 K and guarantees constant medium temperatures at a low level. Another important advantage is the low-maintenance concept of the filtration technology.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

Business E-mail

Please enter a valid mailadress.

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy. The consent declaration relates, among other things, to the sending of editorial newsletters by email and to data matching for marketing purposes with selected advertising partners (e.g., LinkedIn, Google, Meta)

Date: 08.12.2025

Naturally, we always handle your personal data responsibly. Any personal data we receive from you is processed in accordance with applicable data protection legislation. For detailed information please see our privacy policy.

Consent to the use of data for promotional purposes

I hereby consent to Vogel Communications Group GmbH & Co. KG, Max-Planck-Str. 7-9, 97082 Würzburg including any affiliated companies according to §§ 15 et seq. AktG (hereafter: Vogel Communications Group) using my e-mail address to send editorial newsletters. A list of all affiliated companies can be found here

Newsletter content may include all products and services of any companies mentioned above, including for example specialist journals and books, events and fairs as well as event-related products and services, print and digital media offers and services such as additional (editorial) newsletters, raffles, lead campaigns, market research both online and offline, specialist webportals and e-learning offers. In case my personal telephone number has also been collected, it may be used for offers of aforementioned products, for services of the companies mentioned above, and market research purposes.

Additionally, my consent also includes the processing of my email address and telephone number for data matching for marketing purposes with select advertising partners such as LinkedIn, Google, and Meta. For this, Vogel Communications Group may transmit said data in hashed form to the advertising partners who then use said data to determine whether I am also a member of the mentioned advertising partner portals. Vogel Communications Group uses this feature for the purposes of re-targeting (up-selling, cross-selling, and customer loyalty), generating so-called look-alike audiences for acquisition of new customers, and as basis for exclusion for on-going advertising campaigns. Further information can be found in section “data matching for marketing purposes”.

In case I access protected data on Internet portals of Vogel Communications Group including any affiliated companies according to §§ 15 et seq. AktG, I need to provide further data in order to register for the access to such content. In return for this free access to editorial content, my data may be used in accordance with this consent for the purposes stated here. This does not apply to data matching for marketing purposes.

Right of revocation

I understand that I can revoke my consent at will. My revocation does not change the lawfulness of data processing that was conducted based on my consent leading up to my revocation. One option to declare my revocation is to use the contact form found at https://contact.vogel.de. In case I no longer wish to receive certain newsletters, I have subscribed to, I can also click on the unsubscribe link included at the end of a newsletter. Further information regarding my right of revocation and the implementation of it as well as the consequences of my revocation can be found in the data protection declaration, section editorial newsletter.

Sustainable and compact

The high technical standard in terms of operational reliability and energy utilization is reflected in the very high efficiency thanks to frequency-controlled drives and pumps as well as in design solutions for saving energy-intensive media (e.g. vacuum generation). In addition, the UBF also scores points for energy efficiency in cooling: Vomat equips the UBF with cold water or compression coolers, which have a significantly better coefficient of performance than conventional cooling systems with thermostatic on/off switching.

Steffen Strobel: “The resource-saving ultrafine filtration of lubricants and coolants offers numerous advantages in terms of costs, sustainability and machine performance. Our systems manage the balancing act between productivity and environmentally friendly production. Because sustainability also has to do with getting the maximum out of the entire process. The bottom line is that Vomat technology saves resources such as machines, working time, space, energy and raw materials.”
