Simulation software Maya HTT integrates Polygonica into Simform mould cooling simulation

Related Vendors

HASCO Hasenclever GmbH + Co KG

BORIDE Engineered Abrasives

AMPCO METAL Deutschland GbmH

Cloud-based mould cooling simulation is gaining a further performance boost as Maya HTT integrates the Polygonica geometry engine into its Simform platform. The enhancement supports more robust mesh handling and faster thermal analysis, enabling designers and mould makers to optimise cooling layouts earlier in the injection moulding workflow.

Quebec-based Maya HTT are an industry-leading software developer and engineering solutions provider focused on CAE, CAD, CAM and PLM. The company started developing thermal analysis solutions for the space industry in 1982, and in 1996 became a VAR of NX products. Maya HTT is now a Siemens Platinum partner.

Polygonica is a component software library for working with polygon meshes that helps companies in a range of industrial markets solve complex 2D and 3D geometrical problems.

Simform Mold Cooling provides advanced thermal simulation for designers and engineers focused on creating parts to be manufactured using injection molding. Simform is designed to shift left the simulation part of the workflow, greatly reducing the overall time to design a reliably manufacturable part and the associated mold.

To do this Simform provides a ‘no-install’ browser-based solution offered on a pay-for-usage basis, an easy to learn graphical user interface, focused specifically on iterating mold cooling analysis and channel placement as well as fast simulation times using scalable cloud-based GPU resources.

Formnext 2025

Polygonica team to showcase latest geometry processing innovations

“Simform takes away the guesswork from the design process. Experienced mold designers no longer need to rely on the advanced design technique known as ‘kentucky windage’ to overcompensate the cavity for shrinkage: accurate simulation results can be delivered in fifteen minutes, with no requirement for a local workstation, and you only pay for the jobs you need”, the company states.

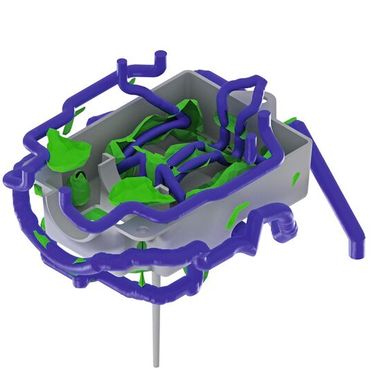

Designers can also optimize their designs using Simform’s generative design capabilities. The channel design workflow automatically recommends channel locations and allows you to easily create virtual prototypes of cooling layouts, directly creating drill channels in the recommended zones and adding baffle features in hard to reach locations. The cooling simulation can be run from a basic mold block, without the need to import a complete mold design.

After iterating designs in Simform to create optimal cooling the resulting geometry and layout recommendations can be imported directly into the user’s CAD system to support the detailed design process.

Chris Blake, Director of New Product Development at Maya HTT commented: “Simform is revolutionising the injection molding industry by allowing part designers, tooling engineers and mold makers to make informed decisions based on powerful yet easy-to-use simulation technology employed earlier in the design process. As software developers, the use of best-in-class software components allowed us to leverage Maya HTT’s decades of experience in thermal simulation to bring a new, designer-focused product to market in a fraction of the normal time. Polygonica sits behind the scenes, quietly performing a number of unglamorous but necessary tasks, making sure the polygon meshes used by the solver are in good shape, which is essential in delivering the solver performance that designers need for fast turnarounds.”
